DZC系列垂直振動提升機
DZC系列振動提升機產品概述
DZC系列垂直振動提升機采用振動電機作振動源，利用兩振動電機的合成振幅，將物料沿螺旋輸送槽向上輸送。DZC系列垂直振動提升機主要用于提升顆粒狀、粉狀、塊狀物料。本輸送機結構簡單,維修容易，物料定量送出，輸送量連續可調，可作為各行業中,小顆粒物料的垂直輸送之用.除具有從下向上提升物料外,還可以完成對物料的干燥、冷卻作用。分開槽式、封閉式兩種結構，并可根據不同工藝的要求，設計物料顆粒分級作用的篩選提升機及設計易燃易爆物料的提升機。
Product overview
DZC series vertical vibration hoist adopts vibration motor as vibration source, the use of two synthesis amplitude of vibration motor, the material along the spiral groove up transportation.DZC series vertical vibration of elevator is mainly used for granular, powder, block material.This machine has simple structure, easy maintenance, send the material quantitative, throughput continuous adjustable, can be used for various industries, small particle materials of vertical transportation. Besides has the material from the bottom up, also can complete drying, cooling effect of the material.Separate groove, and enclosed two kinds of structure, and can according to the requirements of different process, the design of material particle gradation selection hoist and hoist design inflammable and explosive materials.

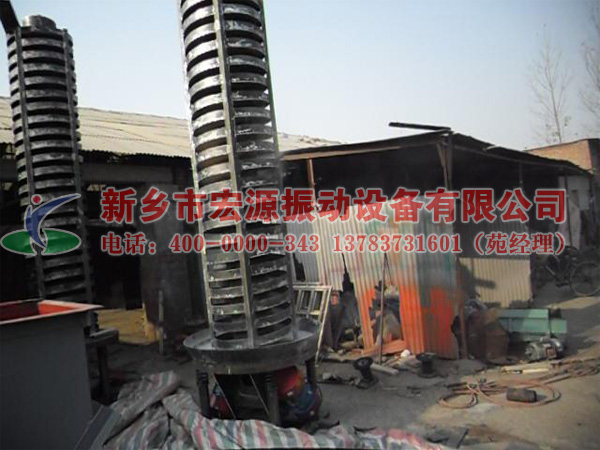

碳鋼材質垂直振動提升機
Corbon steel vertical vibrating elevator
不銹鋼材質垂直振動提升機
stainless steel vertical vibrating elevator
DZC系列垂直振動提升機廣泛應用于化工、橡膠、塑料、醫藥、輕工、食品、冶金、建材、礦山、糧食等行業。
DZC series vertical vibration of elevator is widely used in chemical industry, rubber, plastic, medicine, light industry, food, metallurgy, building materials, mining, food and other industries.
DZC系列振動提升機工作原理
DZC系列電機振動垂直提升機是由提升槽、振動電機、減振系統和底座等組成。該系列提升機是采用振動電機作為振動源，固定在提升槽上的兩臺相同型號的振動電機中心線交叉一定角度安裝，并做相反方向自同步旋轉，振動電機所帶的偏心塊在旋轉時各個瞬間位置所產生的離心力之分力沿拋擲方向作往復運動，使支承在減振器上的整個機體不停振動，使物料在提升槽內被拋起的同時向上運動，物料落入入料槽后，開始被拋起，此時可以使物料與空氣充分接觸，還可以起到散熱冷卻的作用。該提升機對粉狀、塊狀和短纖維狀的固體物料（有粘性和易結塊的除外）都可垂直輸送，還可以完成對物料的干燥、冷卻作用。分敞開式、封閉式兩種結構。并可按照用戶需要進行特殊設計。
Working site
DZC series vertical elevator is made up of improvement slot motor vibration, vibration motor, vibration isolation system and the base, etc.This series of hoist is the vibration motor as vibration source, on the improvement slot with two sets of the same type of the center line of the cross Angle vibration motor installation, and do the opposite direction from the synchronous rotation, vibration motor with eccentric block rotates at every instant position of the centrifugal force generated by the component along the casting direction for reciprocating motion, make the bearing on the shock absorber of whole body vibration, the material being thrown up in the improvement slot upward movement at the same time, the material fall into the trough, start being thrown up, this time can make a good contact with raw material and air, also can have the effect of thermal cooling.The elevator to the powder, block and short fibers of solid materials (except for a viscous and caked) can be vertical transmission, also can complete drying, cooling effect of the material.Open type, closed two structures.And we can special design according to user needs.
可根據客戶要求，設計為振動電機上置
DZC系列垂直振動提升機視頻
Animation ShownDZC系列振動提升機的型式
1.振動源分:
a.交叉軸式螺旋振動輸送機。 b.平行軸式螺旋振動輸送機。
2.以上兩種又各自分為:
a.座式螺旋輸送機。 b.懸掛式螺旋輸送機。
The machine type
1. The vibration source points:
A. cross shaft spiral vibration conveyor.B. parallel shaft helical vibration conveyor.
2. The above two kinds of inductions are divided into:
A. a type screw conveyor.B. hanging screw conveyor.
DZC系列振動提升機主要特點
1.占地面積小、結構簡單、合理。
2.動力消耗小、無噪音、維修方便。
3.封閉式提升有效的防止了粉塵和有害氣體對工作環境的污染。
Features
1. The cover an area of an area small, simple structure, reasonable.
2. The little power consumption, no noise, easy maintenance.
3. Enclosed promote effectively prevent the dust and harmful gas pollution to the working environment.
DZC系列振動提升機型號說明
Models explanationDZ C □
┬ ┬ ┬
│ │ │
│ │ │
│ │ │
│ │ └───────────── 輸送槽直徑
│ │
│ └──────────────- 垂直
│
└──────────────── 電機振動

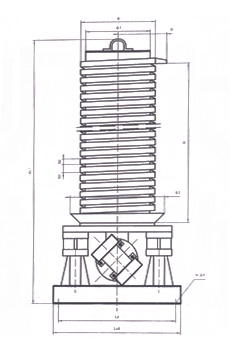

DZC型系列垂直振動提升機安裝尺寸
Installation dimension
當DZC型系列垂直提升機工作時，根據雙振動電機自同步原理，由振動電機產生激振力，強迫整個輸送塔體作水平圓運動和向上垂直運動的空間復合振動，螺旋槽內的物料則受輸送槽的作用，作勻速拋擲圓運動，沿輸送槽體向上運動，從而完成物料的向上（或向下）輸送作業。
When DZC series vertical hoist works, according to the principle of dual vibration motors self-synchronization, produced by the vibration motor excitation force, force the transmission tower body horizontal circular motion and vertical upward movement space complex vibration, material of spiral groove is the role of the conveying groove, a uniform circular motion, throwing down the conveyor tub upward movement, so as to complete material transport operation up (or down).
| 型號 | Φ | Φ1 | Φ2 | H | H1 | H2 | H3 | D | Lx8 | Ld×Bd | Φd |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DZC300 | 300 | 146 | 500 | ～2000 | ～2750 | 40 | 75 | 270 | 680×680 | 11 | |
| DZC500 | 500 | 219 | 850 | ～3000 | ～4020 | 50 | 80 | 475 | 1080×1080 | 880×880 | 13 |
| DZC550 | 550 | 245 | 900 | ～3500 | ～4530 | 55 | 85 | 500 | 1100×1100 | 900×900 | 13 |
| DZC600 | 600 | 273 | 950 | ～4000 | ～5150 | 60 | 85 | 525 | 1100×1100 | 900×900 | 15 |
| DZC800 | 800 | 351 | 1200 | ～4500 | ～5650 | 60 | 90 | 650 | 1300×1300 | 1050×1050 | 15 |
| DZC850 | 850 | 402 | 1250 | ～5000 | ～6150 | 65 | 100 | 675 | 1400×1400 | 1150×1150 | 17 |
| DZC900 | 900 | 530 | 1300 | ～6000 | ～7180 | 65 | 110 | 700 | 1600×1600 | 1300×1300 | 17 |
DZC系列振動提升機技術參數表
Parameters
| 型號 | 輸送量 (t/h) | 輸送槽直徑 (mm) | 輸送寬度 (mm) | 輸送高度 (m) | 振次 (min) | 雙振幅 (mm) | 電動功率 (kw) | 重量 (kg) |
|---|---|---|---|---|---|---|---|---|
| DZC300 | ～1.0 | 300 | 77 | ≤2.0 | 960 | 6～7 | 2×0.4 | 680 |
| DZC500 | ～2.0 | 500 | 140 | ≤3.0 | 6～8 | 2×0.75 | 1010 | |
| DZC550 | ～3.0 | 550 | 152 | ≤3.5 | 6～8 | 2×1.5 | 1190 | |
| DZC600 | ～3.0 | 600 | 163 | ≤4.0 | 6～7 | 2×1.5 | 1321 | |
| DZC800 | ～4.0 | 800 | 224 | ≤4.5 | 6～8 | 2×2.2 | 1590 | |
| DZC850 | ～4.0 | 850 | 224 | ≤5.0 | 6～9 | 2×2.2 | 1750 | |
| DZC900 | ～3.5 | 900 | 185 | ≤6.0 | 6～9 | 2×3.0 | 2100 |
