TD型斗式提升機

TD系列斗式提升機產品概述

       TD系列斗式提升機適用于垂直輸送堆積密度不大于1.5t/m3的粉狀、粒狀、及小塊狀的磨琢性較小的散狀物料，如糧食、煤、水泥、碎礦石等，提升高度最高40m。TD系列斗式提升機嚴格按照J(rèn)B3926-85《垂直斗式提升機》標準設計制造，目前國內常用的斗式提升機均為垂直式。TD系列斗式提升機特點為：結構簡單，運行平穩，挖取式裝料，離心重力式卸料，物料溫度不超過60℃；TD系列斗式提升機與傳統D型斗式提升機相比輸送效率高、料斗形式多，應優先選用。本機備有四種料斗：Q型（淺斗）、H型（弧底斗）、zh型（中深斗）、sh型（深斗），分別輸送各種物料，用戶可以根據物料特性來選擇適當?shù)牧隙贰１咎嵘龣C(jī)代號為TD,即帶式斗式提升機；產品規格以斗寬表示。

Product overview
   TD series bucket elevator is suitable for the vertical transport of bulk density is not greater than 1.5 t/m3 powder, granulated and small lump of grinding cut less material, such as grain, coal, cement, crushed ore, hoisting height to 40 m.TD series bucket elevator in strict accordance with the JB3926-85 standard design and manufacture of vertical bucket elevator, the current domestic common bucket elevator are vertical.TD series bucket elevator features: simple structure, smooth operation, harvest type charging, centrifugal gravity discharge, the material temperature less than 60 ℃;TD series bucket elevator compared with the traditional D type bucket elevator, hopper, high transmission efficiency should be preferable.This machine is equipped with four hopper: Q type (light pipe), H (arc bottom bucket), zh (in a deep bucket), sh (deep), conveying a variety of materials, respectively, a user can choose according to material features of appropriate hopper.This elevator codes for TD, the belt bucket elevator;Product specifications to dou wide said.

斗式提升機料斗和皮帶

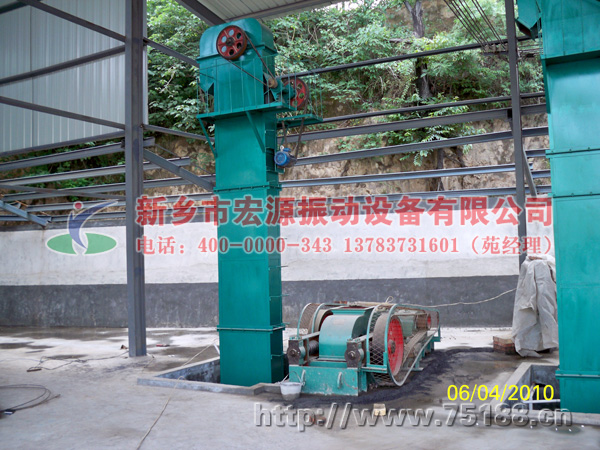

斗式提升機現場圖片

Working site

TD系列斗式提升機基本結構

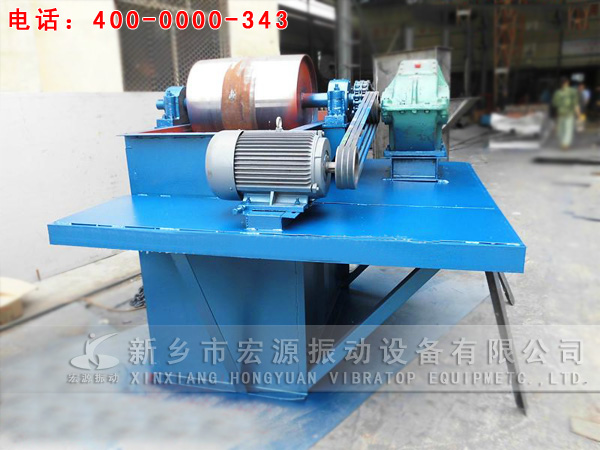

      TD型斗式提升機由運行部分(料斗與牽引膠帶),帶有傳動滾筒的上部區段，帶有拉緊滾筒的下部區段，中間機殼,驅動裝置,逆止制動裝置等組成。適用于向上輸送松散密度ρ＜1.5t/m3粉狀、粒狀和小塊狀的無磨琢性和半磨琢性散狀物料,如煤、砂、焦末、水泥、碎礦石等。TD型斗式提升機結構形式為：TD型斗提升機的傳動裝置有兩種形式，分別配有YZ型減速器、ZQ(或YY)型減速器。YZ型軸減速器直接裝在主軸軸頭上,省去了傳動平臺、聯軸器等,使結構緊湊、重量輕,而且其內部帶有異型輥逆止器，逆止可靠。該減速器噪音低，運轉平穩，并隨主軸浮動，可消除安裝應力。

Structures
     TD type bucket elevator by running parts (hopper and traction tape), with the upper section of the drive roller, with the lower section of the idler pulley, intermediate casing, device drivers, non-return brake equipment, etc.Suitable for the upward transportation loose density < 1.5 t/m3 powder, granulated and small lump without grinding cut and half cut grinding, loose materials such as coal, sand, coke, cement, at the end of the crushed ore, etc.TD type bucket elevator structure form is: TD type bucket elevator drive has two forms, respectively with YZ type gear reducer, ZQ (YY) or type gear reducer.YZ type shaft reducer directly mounted on the spindle shaft head, eliminating the transmission platform, coupling, etc., the compact structure, light weight, and its internal with different roll non-return device, non-return and reliable.The reducer low noise, smooth operation, and with the main shaft floating, can eliminate stress.

TD系列斗式提升機主要特點

1.提升范圍廣,這類提升機對物料的種類、特性要求少,不但能提升一般粉狀、小顆粒狀物料,而且可提升磨琢性較大的物料.密封性好,環境污染少。
2. 驅動功率小,采用流入式喂料、誘導式卸料、大容量的料斗密集型布置.在物料提升時幾乎無回料和挖料現象,因此無效功率少。
3.使用壽命長,提升機的喂料采取流入式,無需用斗挖料,材料之間很少發生擠壓和碰撞現象。本機在設計時保證物料在喂料、卸料時少有撒落,減少了機械磨損。
4. 運行可靠性好,先進的設計原理和加工方法,保證了整機運行的可靠性,無故障時間超過2萬小時。提升高度高.提升機運行平穩,因此可達到較高的提升高度。

Features
1. Ascension is wide, this kind of elevator less kinds, characteristics of the material requirements, not only can improve the general powder, small granular materials, and can improve grinding cut larger material. Good sealing, less environmental pollution.
2. Driving power is small, use of feeding, induction of inflow discharge, large capacity of hopper intensive layout. In material ascends almost no back and dig material phenomenon, therefore less reactive power.
3. The service life is long, hoist feed take into the type, without using bucket digging of material, the material between the extrusion and collision occur rarely.The machine when the design to ensure material few scattered when feeding, discharging, reduce the mechanical wear and tear.
4. Good reliability, advanced design principle and processing method, ensure the reliability of the machine running, trouble-free time more than 20000 hours.High hoisting height. Hoist running smoothly, thus can achieve high hoisting height.
TD-D型斗式提升機安裝尺寸

Installation dimensions

TD系列斗式提升機技術參數表

Parameters

型號	TD160				TD250				TD315				TD400
料斗形式	Q	h	zD	Sd	Q	h	zD	Sd	Q	h	zD	Sd	Q	h	zD	Sd
輸送量(m3/h)	5.4	9.6	9.6	16	12	22	23	35	17	30	25	40	24	46	41	66
斗寬	160				250				315				400
斗容(L)	0.5	0.9	4.2	1.9	1.3	2.2	3.0	4.6	2	3.6	3.8	5.8	3.1	5.6	5.9	9.4
斗距	280		350		360		450		400		500		480		560
帶寬	200				300				400				500
斗速(m/s)	1.4				1.6				1.6				1.8
物料量大塊	25				35				45				55
型號	TD500				TD630			TD160		TD250		TD350		TD450
料斗形式	Q	h	zD	Sd	h	zD	Sd	Q	S	Q	S	Q	S	Q		S
輸送量(m3/h)	38	70	58	92	85	89	142	4.7	8	18	22	25	42	50		72
斗寬	500				630			160		250		350		450
斗容(L)	4.8	9	9.3	15	14	14.6	23.5	0.65	1.1	2.6	3.2	7	7.8	14.5		15
斗距	500		625		710			300		400		500		640
帶寬	600				700			200		300		400		500
斗速(m/s)	1.8				2			1		1.25		1.25		1.25
物料量大塊	60				70			25		35		45		55

說明：1.表中斗容為計算斗容，輸送量按填充系數0.6計算得出。
　　 2.斗提機料斗用途為:淺料斗：輸送潮濕、易結塊、難拋出的物料。如濕沙、濕煤等。
　　　 深料斗：輸送干燥的、松散的、易拋出的物料。如水泥、煤塊、碎石、石英砂等。

Description:
1. Bucket volume in the table to calculate the bucket volume, throughput calculated according to the filling coefficient of 0.6.
2. The bucket machine hopper purpose is: shallow hopper: transporting materials in damp, easy to agglomerate, difficult to throw.Such as wet sand, wet coal, etc.
Deep hopper: conveying dry, loose materials, easy to throw.Such as cement, coal, gravel, quartz sand, etc.

傳動裝置技術規范表

Transmission device specifications

提升機 規格	傳動裝置 型 號	電動機功率 （KW)	電 動 機 型號	ZQ 減速機型號
				右裝傳動裝置	左裝傳動裝置
TD100	C1	1.5	Y100L-6	250-Ⅵ-3Z	250-Ⅵ-4Z
	C2	2.2	Y112M-6
TD160	C1	3	Y132S-6	350-Ⅵ-3Z	350-Ⅵ-4Z
	C2	4	Y132M1-6
	C3	5.5	Y132M2-6	400-Ⅵ-3Z	400-Ⅵ-4Z
	C4	7.5	Y160M-6
TD250	C1	5.5	Y132M2-6	400-Ⅵ-3Z	400-Ⅵ-4Z
	C2	7.5	Y160M-6
	C3	11	Y160L-6	500-Ⅵ-3Z	500-Ⅵ-4Z
	C4	15	Y180L-6
TD315	C1	7.5	Y160M-6	400-Ⅵ-3Z	400-Ⅵ-4Z
	C2	11	Y160L-6	500-Ⅵ-3Z	500-Ⅵ-4Z
	C3	15	Y180L-6
	C4	18.5	Y200L1-6	650-Ⅵ-3Z	650-Ⅵ-4Z
TD400	C1	15	Y180L-6	500-Ⅵ-3Z	500-Ⅵ-4Z
	C2	18.5	Y200L1-6	650-Ⅵ-3Z	650-Ⅵ-4Z
	C3	22	Y200L2-6
	C4	30	Y225M-6
TD500	C1	18.5	Y200L1-6	650-Ⅵ-3Z	650-Ⅵ-4Z
	C2	22	Y200L2-6
	C3	30	Y225M-6
	C4
TD630	C1	22	Y200L2-6	650-Ⅵ-3Z	650-Ⅵ-4Z
	C2	30	Y225M-6

斗式提升機種類分類:

    斗式提升機作為一種常用的提升設備，在得到廣泛的應用的同時，根據不同行業的要求也有著非常清楚的分類，其按照傳動結構可以分為：
(1).TD系列斗式提升機
    TD系列斗式提升機是一種國家標準的斗式提升機，該系列斗式提升機和D系列斗式提升機都是采用的膠帶傳動來提升物料，兩者沒有本質的區別，D系列斗式提升機產品型號較老且型號規格少。TD系列斗式提升機是在D系列斗式提升機的基礎上經過產品改良而來，其規格有TD100(不常用)、TD160、TD250、TD315、TD400、TD500、TD630、TD800、TD1000等型號,其中TD160、TD250、TD315等型號為普遍采用型號.
(2).TH系列斗式提升機
    TH系列斗式提升機是一種常用的提升設備，該系列斗式提升機采用鍛造環鏈作為傳動部分，具有很強的機械強度，主要用于提升粉體和小顆粒及小塊狀物料。區別于TD系列斗式提升機，其提升量更大、運轉效率更高。其常用于較大比重的物料的提升。
(3).NE系列斗式提升機
   NE系列斗式提升機是一種新型的斗式提升機，其采用板鏈傳動，區別于老型號TB系列板鏈斗式提升機，其命名方式采用提升量而命名而非斗寬。如NE150指的是提升量為150噸一小時而不是斗寬150。NE系列斗式提升機有著很高的提升效率，根據提升速度不同還分有NSE型號及高速板鏈斗式提升機。
(4).TB系列斗式提升機
    TB系列斗式提升機是一種較老型號的斗式提升機，其傳動部分采用板鏈傳動，現已經被相應NE系列斗式提升機產品替代。
(5).TG系列斗式提升機
    TG系列斗式提升機是一種加強型膠帶斗式提升機，其區別于TD系列斗式提升機，TG系列斗式提升機采用鋼絲膠帶作為傳動帶，其具有更強的傳動能力。該系列斗式提升機多被應用于糧食輸送上，又被稱呼為糧食專用斗式提升機。
(6).其它型號斗式提升機
    常見的斗式提升機型號還有HL系列斗式提升機、GTD系列斗式提升機、GTH系列斗式提升機等，其均為以上型號的不同叫法和演變形式。

Kinds of classification
Bucket elevator, as a commonly used lifting equipment, widely used at the same time, according to the requirements of different industries have a very clear classification, according to the transmission structure can be divided into:
(1). TD series bucket elevator
TD series bucket elevator is a kind of national standard of bucket elevator, the series bucket elevator and D series bucket elevator are the tape drive to improve material, no essential difference between the two, D series bucket elevator product model relatively less old and specifications.TD series bucket elevator is on the basis of the D series bucket elevator after product improvement, and its specifications have TD100 (not used), TD160, TD250, TD315, TD400, TD500, TD630, TD800, TD1000 models, including TD160, TD250, TD315 model for the widely used model.
(2). TH series bucket elevator
TH series bucket elevator is a commonly used lifting equipment, the series bucket elevator forged ring chain as the driving part, has a strong mechanical strength, mainly used for lifting powder and small particles and small block material.Differed from TD series bucket elevator, the lifting capacity is bigger, more efficient operation.The materials used to a bigger improvement.
(3). NE series bucket elevator
NE series bucket elevator is a new type of bucket elevator, it USES the plate chain, different from the old models TB series plate chain bucket elevator, named after its naming USES lifting capacity, rather than fight wide.Such as NE150 refers to the lifting capacity of 150 tons a sometimes not fight 150 wide.NE series bucket elevator has a high efficiency, according to the speed of different points are also NSE model and high-speed plate chain bucket elevator.
(4). The TB series bucket elevator
TB series bucket elevator is a kind of older types of bucket elevator and its transmission part adopts plate chain, now replaced by corresponding NE series bucket elevator products.
(5). TG series bucket elevator
TG series bucket elevator is a kind of reinforced belt bucket elevator, the difference in the TD series bucket elevator, TG series bucket elevator adopts steel wire adhesive tape as a transmission belt, it has stronger ability of transmission.This series bucket elevator is more applied in food delivery, and called for food special bucket elevator.
(6). Other types of bucket elevator
Common bucket elevator model number and the HL series bucket elevator, GTD series bucket elevator, GTH series bucket elevator, etc., and its form are the above model and different way of evolution.

我公司可根據用戶需要設計制造特殊型號規格的斗式提升機。
我公司對所有技術資料、尺寸保留修改的權利，如實物與文中圖案不符，應以實物為準。
Our company can design and manufacture according to user needs special specifications of bucket elevator.
My company for all technical data, reserve the right to modify the size, such as material object does not accord with the design, the material shall prevail.
