TDTG斗式提升機

TDTG斗式提升機概述

   本公司生產的TDTG 系列斗式提升機是專門用于連續垂直輸送谷物的設備，其占地面積小，輸送量大，功率消耗低。在油脂、飼料、面粉、淀粉等行業使用極為普遍，該系列斗式提升機是根據國內外斗式提升機的現狀，結合國情消化吸收同類產品的優點生產的新一代斗式提升機，可廣泛用于垂直輸送各種顆粒狀物料。該設備廣泛用于糧食、淀粉、油脂、酒精等行業。
Product overview
   This company produces the TDTG series bucket elevator is specially used for continuous vertical conveying grain of equipment, its cover an area of an area small, bue, low power consumption.In oil, feed, flour, starch and other industries use is widespread, the series bucket elevator is according to the current situation of the bucket elevator at home and abroad, combining the digestion, absorption, the advantages of similar products in the production of a new generation of bucket elevator, which can be widely used for vertical transportation of various granular materials.The equipment is widely used in food, starch, oil, alcohol, etc.

TDTG斗式提升機特點

● 頭輪采用精制橡膠覆膠，防火、耐磨，有效防止皮帶的打滑；
● 裝配式觀察窗和防爆口，有效防止粉塵爆炸，安全可靠（必要時，可另配自帶式的二筒小脈沖除塵泄壓）；
● 配止逆轉裝置，可有效防止因停機引起的堵料；
● 機筒采用專用折邊組合工藝，強度高、密封性好；
● 配備高強度輕質塑料畚斗，自重輕、耐磨損，提升產量并降低能耗；
● 采用強力畚斗帶或聚脂尼龍畚斗帶，延伸率低，耐用可靠；
● 機座可裝順、逆向進料斗，滿足用戶不同需要；
● 機座張緊裝置采用重力式張緊或螺桿張緊；
● 可選配自動跑偏報警和速度監測系統。
Features
●Round head adopts refined rubber adhesive, fire prevention, wear-resisting, effectively prevent the belt from slipping;
●Prefabricated observation window and vent, effectively prevent dust explosion, safe and reliable, when necessary, can match with other type of 2 tube small pulse dust removal pressure)
●With check reversing device, which can effectively prevent plugging material caused by downtime;
●Barrel combination using special folding process, high strength, good sealing,
●Equipped with high strength lightweight plastic winnowing pan, light weight, corrosion resistance, wear improve yield and reduce the energy consumption;
●Using powerful band winnowing pan or polyester nylon winnowing pan, low elongation, durable and reliable;
● frame can be suitable, reverse feed hopper, satisfy customer's needs;
●stand tensioning device adopts gravity tension or screw tensioning;
●optional automatic running deviation alarm monitoring system and speed.

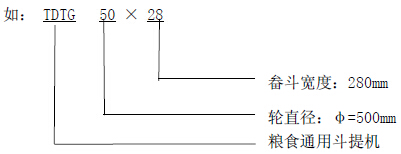

TDTG斗式提升機型號表示

Models Explanation

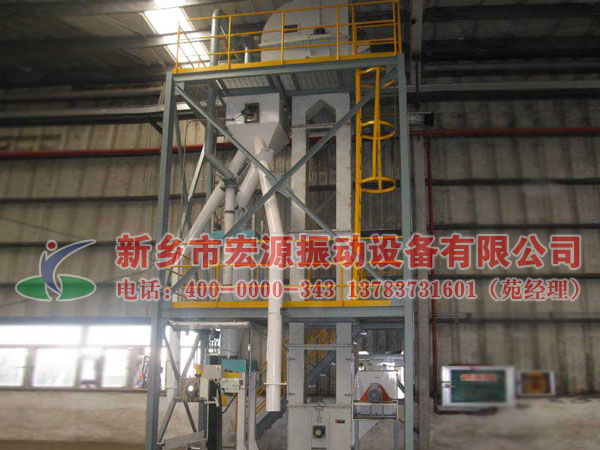

TDTG斗式提升機安裝方法

Installation method

TDTG斗式提升機技術參數

Parameters

型號				頭輪直徑		提升量（t/h）			線速度（m/s）					畚斗距離				提升高度						電機功率（Kw）
TDTG20×11				200		2~8			2~3.5					150~220				≤10						1.1~3
TDTG26×11				260		3~9			2~3.5					150~220				≤15						1.1~3
TDTG36×11				320		5~10			2~3.5					125~180				≤30						1.1~3
TDTG36×13						10~15								150~220										1.5~4
TDTG36×18						15~30								150~220										2.2~7.5
TDTG40×13				400		10~20			2~3.5					150~220				≤35						2.2~5.5
TDTG40×18						20~35								150~250										2.2~7.5
TDTG40×23						30~50								200~250										3~11
TDTG50×18				500		10~20			2~3.5					170~220				≤40						3~7.5
TDTG50×23						20~35								190~250										4~11
TDTG50×28						30~50								220~250										5.5~18
TDTG60×23				600		40~60			2~3.5					200~250				≤45						4~13
TDTG60×28						80~100								200~250										5.5~18
TDTG60×34						100~150								220~280										7.5~22
TDTG60×40						120~160								220~280										22-45
TDTG80×48				800		150~200			2~3.5					280~330				≤50						11~45
TDTG80×48×2						200~400

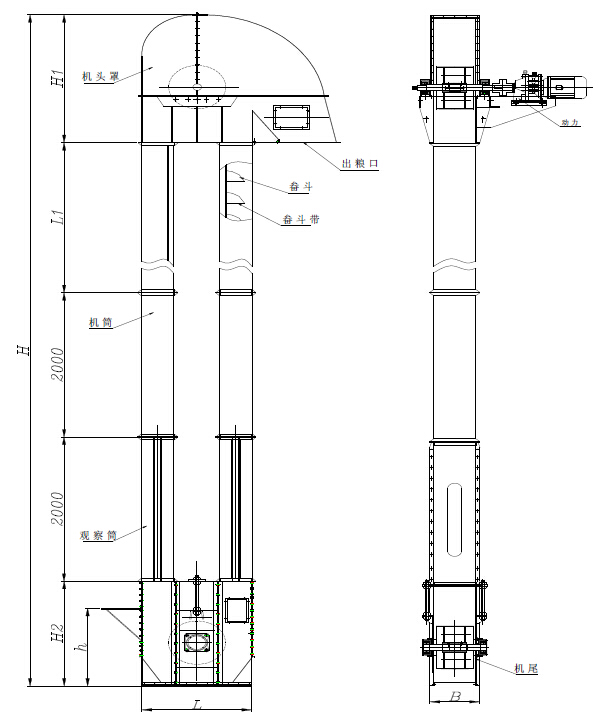

TDTG斗式提升機外形尺寸

Boundary Dimension

型號			L（mm）		B（mm）			H1（mm）				H2（mm）				h（mm）					L1（mm）					H（mm）
TDTG20/11			475		215			555				570				455					標準機筒:L=2000 非標準機筒 L=1500; L=1000					根據用戶需求
TDTG26/11			475		215			555				570				455
TDTG40/18			780		380			1170				1150				945
TDTG40/23			780		380			1170				1150				945
TDTG50/28			1032		445			1525				1100				1000
TDTG60/34			1160		525			1770				1450				1250
TDTG60/40			1248		588			1812				1530				1330
TDTG80/48			1400		600			1750				1850				1750
