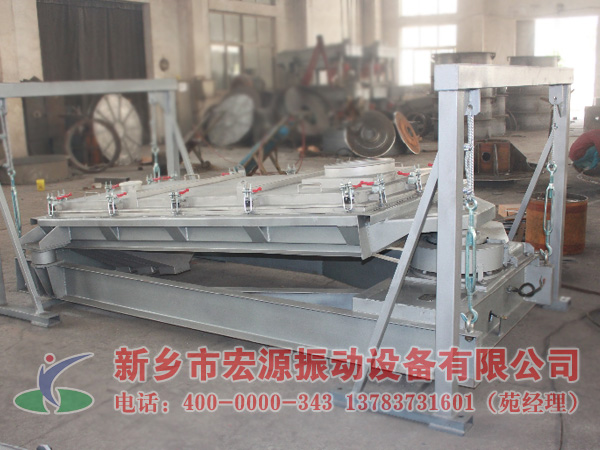

平面回轉篩圖片

Photos

平面回旋篩概述

高效精密平面回旋篩，它包括有一個機座4和一個篩面上安裝有彈性球的篩體2，機座的兩端外側分別設有一個龍門吊架1，在兩個龍門吊架與機座的掛環上分別連接有將機座水平吊起的吊繩3，在機座上面靠一端安裝有一套驅動裝置5，在驅動裝置上面安裝有傳動箱6，在傳動箱上經主動軸、從動軸及其偏心塊與篩體的加料口一端相連接，篩體的另一端向下傾斜3-8度用吊繩吊掛在另一端的龍門吊架上。

Product overview
Efficient and high precision Plane whirl screen,It includes a base 4 and a screen install elastic ball sieve body 2, stand at opposite ends of the lateral has a gantry hanger 1, respectively on two gantry hanger and the ring of base respectively connected with the base level of hoist rope 3, on stand by side install a driver unit 5, above the driver installation has a transmission case 6, the driving shaft and driven shaft in the transmission case and its eccentric block and the screen body of feeding mouth at connection, on the other side of the screen body down 3-8 degrees with rope hanging on the other side of the gantry crane frame.It includes a base and a 4 screen install elastic ball sieve body 2, stand at opposite ends of the lateral has a gantry hanger 1, respectively on two gantry hanger and base ring respectively connected with the base level of hoist rope 3, on stand by side install a driver unit 5, above the driver installation has a transmission case 6, the driving shaft and driven shaft in the transmission case and its eccentric block and the screen body of feeding mouth at connection, on the other side of the screen body down 3-8 degrees with rope hanging on the other side of the gantry crane frame.

平面回旋篩
Plane whirl screen

高效精密平面回旋篩具有設計合理，結構簡單，運行平穩，全封閉結構，無塵染，防堵孔，防粘網等優點。特別是對吸濕性強、粘性大、易堵孔和粘網的尿素篩分更為明顯。由于采用了平面回轉運動原理，有效的降低了設備的動靜比和基礎動載荷。該設備采用平面回轉振動篩上下振動，網下有自動清理設備，較傳統的直線篩而言，提高了絲網壽命，噪音小，篩分面積大，將效率由原來的93～95提高到了99，推廣前景好。pxzs型平面回轉尿素篩分機主要是針對大顆尿素的篩分開發的一種新型篩分設備，也廣泛應用于冶金、礦山、化工、醫藥、建材、糧食加工、耐火材料等行業的精確分級篩分作業。是一種新型的高標準篩分設備，該系列設備具有篩分效率高，篩網利用率高，工作穩定可靠，不易將合格的顆粒振碎，無污染，是一種理想的環保型篩分設備。
Efficient and high precision plane whirl screen has a advantage of reasonable design, simple structure, smooth operation, fully closed structure, dust-free dye, prevent hole, anti-sticking net and so on.Especially the hygroscopicity strong, big viscosity, easy to plug holes and mesh the twigs of urea is more apparent.Due to the principle of plane rotary motion is adopted, which can effectively reduce the equipment of dynamic load ratio and foundation.Vibrates the device adopts the plane rotary vibrating screen, off-line automatic cleaning device, compared with the traditional linear screnn, improve the working life, the small noise,largescreening area, the efficiency has been increased to 99 from 93 to 95, good promotion prospects.PXZS type plane rotary urea sieving machine mainly for large urea of screening and development of a new screening equipment, is widely used in metallurgy, mining, chemical industry, medicine, building materials, food processing, refractories and other industries precision classification screening operation.Its a new type of high standard screening equipment, the series equipment has high screening efficiency, high utilization rate of screen mesh, stable and reliable work, not easy to break the qualified particle vibration, no pollution, is an ideal environmental protection screening equipment.

平面回旋篩工作原理

從篩機搖動體即篩箱運動軌跡來看，平面回旋篩又稱往復篩，其驅動裝置所產生的振動力是一繞定軸、方向呈一定規律變化的慣性力，其本質是由偏心輪繞定軸轉動所形成的往復慣性力。根據回旋篩的結構特點及工作原理，其篩面一般為水平或微傾斜布置�；匦Y的工作原理為:篩機啟動后，篩機搖動體即篩箱在慣性力的作用下作前后往復運動，篩箱帶動篩面作周期性搖動，從而使篩面上的物料隨篩箱一同作定向跳躍式運動，期間，小于篩面孔徑的物理通過篩孔落到下層，成為篩下物，大于篩面孔徑的物料經連續翻滾跳躍運動后從排料口排出，最終完成篩分工作。

Working principles
Watching the track movement of the screen box, the plane whirl screen is also called reciprocating screen, vibration produced by the drive power, is a moving around a fixed axle direction in a certain regular changes of inertia force, its essence is formed by the eccentric wheel rotating around a fixed axle reciprocating inertia force.According to the structure characteristics and working principle of whirl screen, the screen surface is level or slightly sloping commonly decorate.Whirl screen working principle is: the sieve machine starts, shaking sieve machine body namely screen box in reciprocating motion, front and back the effect of inertia force operating screen box drives the screen surface to make periodic shaking, so that the material on the surface of the screen to make directional jumping movement, with screen box, smaller than the screen surface aperture physics by mesh drop to lower level, becoming the undersize, greater than the screen surface pore size of the material after continuous rolling jumping movement from the discharging mouth eduction, eventually completed screening work.

從平面回旋篩的結構和工作原理可以看出，其傳動機構偏心輪距物料運動軌跡及物料在篩面上的滯留時間有至關重要的影響，也即對篩機處理能力和篩分效率有相反的影響，有鑒于此，在實際篩分作業中，我們可以根據具體情況和需要，在生產能力和篩分效率兩方面有所取舍。
From the structure and working principle of plane whirl screen, you can see that the eccentric distance transmission material movement and material in retention time has vital influence on the surface of the screen, which is to screen machine processing power and screening efficiency have the opposite effect, because of this, in actual screening homework, we can according to the specific circumstances and needs of the two aspects of production capacity and screening efficiency.

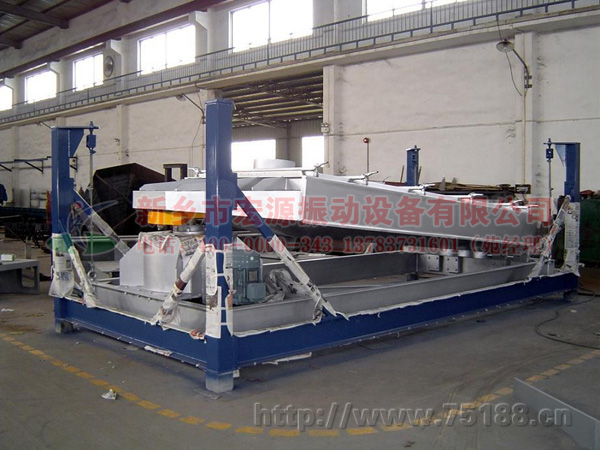

平面回旋篩使用現場

Working site

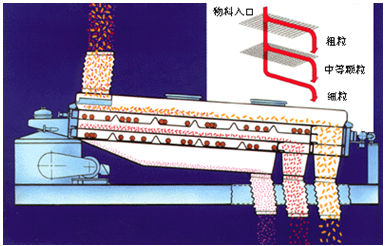

平面回旋篩物料運行軌跡

Moving trajectory

同樣或相近的配置，平面回旋篩比一般慣性振動篩有更高的處理能力和篩分效率，其本質是，該機型可人為的控制物料在篩面上的運動軌跡和滯留時間，即在有限空間，由于物料的運動軌跡為速度和加速度均為變化非線性曲線，所以，物料與篩面有更多接觸機濾，當然也就增加了透篩率。
Same or similar configuration, plane whirl screen than general inertia vibrating screen has a higher capacity and screening efficiency, its essence is that the aircraft can be artificially controlled movement on the surface of the material in the screen and the residence time, namely in the limited space, since the trajectory for the velocity and acceleration of the material for the non-linear curve, so the material in contact with the screen surface has more machine filter, of course, increasing the screening rate.
