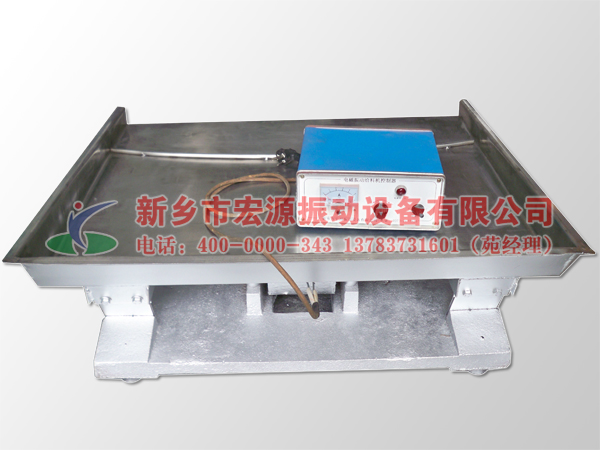

座式電磁振動給料機
座式電磁振動給料機概述
Product overviewA type of electromagnetic vibrating feeder is widely used in metallurgy, mining, coal, building materials, chemical industry, electric power, food, machinery and so on, granular, powdery materials can be uniform, continuous, sent to quantitatively by the device.Especially suitable for automatic batching, quantitative packaging, production process automation, feeding requiring high precision.Feeder simple structure and convenient debug.Installation can be divided into a type installation and hanging installation.Normal feeding can install downdip 10 °, the viscous or high water content material or powder material downdip 15 ° install and use.Feeder type selection design should be considered when setting sliding nozzle and the gate, you may refer to the specific configuration GZV series and GZ series electromagnetic vibrating feeder configuration scheme, to ensure the stability of amplitude and quantificationally.
GZ系列電磁振動給料機工作原理
電磁振動給料機的激振器電磁線圈的電流是經過單相半波整流的，當線圈接通后在正半周內有電流通過，銜鐵與鐵芯之間便產生了一脈沖電磁力互相吸引，這時槽體向后運動，激振器的主彈簧發生變形儲存了一定的勢能，在負半周線圈中無電流通過，電磁力消失，主彈簧釋放能量，使銜鐵和鐵芯朝反方向離槽體向前運動，于是電磁振動給料機以交流電源的頻率作每分鐘3000次的往復振動，由于槽體的底平面與激振力作用線有一定的夾角，因此槽體中的物料沿拋物線的軌跡連續不斷地向前運動。調節整流電壓的高低，即可控制電磁振動給料機的送料量。給料機采用可控硅整流供電。改變可控硅的導通角，即可控制輸出電壓的高低。根據使用條件，可取不同信號來控制可控硅導通角的大小以達到自動定量送料的目的。
Working principles
Electromagnetic vibrating feeder of the vibrator of electromagnetic coil current is a single-phase half-wave rectifier, when the coil after connect in the positive half cycle with an electric current passes through, between armature and core to produce a pulse electromagnetic force to attract each other, when the tub backwards movement, the main spring vibrator distortion stored potential energy, no current through in the negative half cycle coil, electromagnetic force, the main spring release energy, make the armature and core in the opposite direction from the tub forward movement, so the electromagnetic vibrating feeder with the frequency of the ac power source 3000 beats per minute of reciprocating vibration, due to the tub bottom plane and the excitation force corresponding to a certain Angle, so material along a parabolic trajectory in tub continuously move forward.Adjust the height of the rectifier voltage, can control of electromagnetic vibrating feeder to send shoes.Feeder with silicon controlled rectifier power supply.Change the conduction Angle of silicon controlled rectifier to control the output voltage of the high and low.According to the conditions of use, recommend different signal to control the size of the thyristor conduction Angle in order to achieve the purpose of automatic quantitative feeding.
電磁振動給料機配套控制箱
Form a complete set of control box
配套控制箱具有手動控制和自動控制兩種功能。自動控制信號為0～5V或～20mA。控制箱基本電路采用先進的移相觸發器控制固態繼電器作為主回路整流控制原件，可靠性好、壽命長，是一種新型控制電路。控制箱分為掛式與臺式兩種，訂貨時請注明。
Form a complete set of control box with manual control and automatic control two functions.Automatic control signal is 0 ~ 5 v or ~ 20 ma.Basic circuits of control box is the advanced phase shift trigger control of solid state relay as the main circuit of the original rectifier control, good reliability, long service life, is a new type of control circuit.Control box is divided into hanging and table two, please specify when ordering.
座式電磁振動給料機技術參數表
Parameters| 類型 | 型號 | 生產率(t/h) | 給料粒度mm | 雙振幅mm | 供電電壓(V) | 電流(A) | 有效功率(Kw) | 配套控制箱信號 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 水平 | -10度 | 工作電流 | 表示電流 | |||||||
| 基本型 | GZ1 | 5 | 7 | 50 | 1.75 | 220 | 1.34 | 1 | 0.06 | XKZ-5G2 |
| GZ2 | 10 | 14 | 50 | 3.0 | 2.3 | 0.15 | ||||
| GZ3 | 25 | 35 | 75 | 4.58 | 3.8 | 0.2 | ||||
| GZ4 | 50 | 70 | 100 | 8.4 | 7 | 0.45 | XKZ-20G2 | |||
| GZ5 | 100 | 140 | 150 | 12.7 | 10.6 | 0.65 | ||||
| GZ6 | 150 | 210 | 200 | 1.5 | 380 | 16.4 | 13.3 | 1.2 | XKZ-20G3 | |
| GZ7 | 250 | 350 | 250 | 24.6 | 20 | 3 | ||||
| GZ8 | 400 | 560 | 300 | 39.4 | 32 | 4 | ||||
| GZ9 | 600 | 840 | 350 | 47.6 | 38.6 | 5.5 | XKZ-200G3 | |||
| GZ10 | 750 | 1050 | 500 | 39.4*2 | 32*2 | 4*2 | XKZS-200G3 | |||
| GZ11 | 1000 | 1400 | 500 | 47.6*2 | 38.6*2 | 5.5*2 | ||||
| 上振型 | GZ3S | 25 | 35 | 75 | 1.75 | 220 | 4.58 | 3.8 | 0.2 | XKZ-5G2 |
| GZ4S | 50 | 70 | 100 | 8.4 | 7 | 0.45 | XKZ-20G2 | |||
| GZ5S | 100 | 140 | 150 | 12.7 | 10.6 | 0.65 | ||||
| GZ6S | 150 | 210 | 200 | 1.5 | 380 | 16.4 | 13.3 | 1.5 | XKZ-20G3 | |
| GZ7S | 250 | 350 | 250 | 24.6 | 20 | 3 | XKZ-100G3 | |||
| GZ8S | 400 | 560 | 300 | 39.4 | 32 | 4 | ||||
| 封閉型 | GZ1F | 4 | 5.6 | 40 | 1.75 | 220 | 1.34 | 1 | 0.06 | XKZ-5G2 |
| GZ2F | 8 | 11.2 | 40 | 3.0 | 2.3 | 0.15 | ||||
| GZ3F | 20 | 28 | 60 | 4.58 | 3.8 | 0.2 | ||||
| GZ4F | 40 | 56 | 60 | 8.4 | 7 | 0.45 | XKZ-20G2 | |||
| GZ5F | 80 | 112 | 80 | 12.7 | 10.6 | 0.65 | ||||
| GZ6F | 120 | 168 | 80 | 1.5 | 380 | 16.4 | 13.3 | 1.5 | XKZ-20G3 | |
| 輕槽型 | GZ5Q | 100 | 140 | 200 | 1.5 | 220 | 12.7 | 10.6 | 0.65 | XKZ-20G2 |
| GZ6Q | 150 | 210 | 250 | 380 | 16.4 | 13.3 | 1.5 | XKZ-20G3 | ||
| GZ7Q | 250 | 350 | 300 | 24.6 | 20 | 3 | XKZ-100G3 | |||
| GZ8Q | 400 | 560 | 350 | 39.4 | 32 | 4 | ||||
| 平槽型 | GZ5P | 50 | 70 | 100 | 1.5 | 220 | 12.7 | 10.6 | 0.65 | XKZ-20G2 |
| GZ6P | 75 | 105 | 380 | 16.4 | 13.3 | 1.5 | XKZ-20G3 | |||
| GZ7P | 158 | 175 | 24.6 | 20 | 3 | XKZ-100G3 | ||||
| 寬槽型 | GZ5K1 | 200 | 100 | 1.5 | 220 | 12.7*2 | 10.6*2 | 0.65*2 | XKZ-20G2 | |
| GZ5K2 | 240 | |||||||||
| GZ5K3 | 270 | |||||||||
| GZ5K4 | 300 | |||||||||

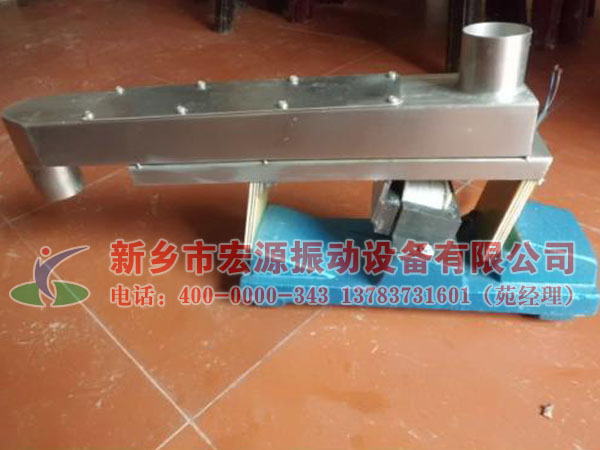

| 圓管型 | GZ1G | 2 | 50 | 1.75 | 220 | 1.34 | 1 | 0.06 | XKZ-5G2 | |
| GZ2G | 4 | 50 | 3.0 | 2.3 | 0.15 | XKZ-5G2 | ||||
| GZ3G | 10 | 60 | 4.58 | 3.8 | 0.2 | XKZ-5G2 | ||||
| GZ4G | 20 | 70 | 8.4 | 7 | 0.45 | XKZ-20G2 | ||||
| GZ5G | 40 | 80 | 12.7 | 10.6 | 0.65 | XKZ-20G2 | ||||
| 特大型 | GZ11-T | 1000物料為煤比重0.85 | 300 | 1.5 | 380 | 47.6*2 | 38.6*2 | 5.5*2 | SZK.00 | |
