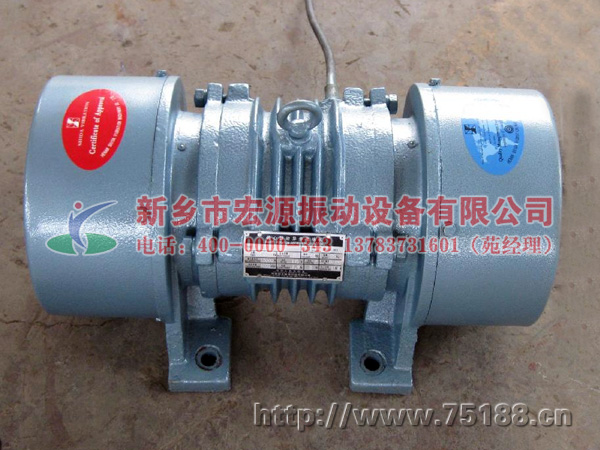

YZDP振動電機

YZDP振動電機的工作原理

   YZDP振動電機由特制電機外加激振重塊組成,當電機通電旋轉時,激振塊產生激振力,通過電機底腳或法蘭盤傳遞縱橫振動機械.

Working principles
    YZDP vibrating motor and vibration by special motor heavy blocks, when the electric motor rotation, vibration blocks to produce vibration force, by foot or motor flange vertical and horizontal vibration machinery.
    特制電機由特制定子線包和轉子軸組成,能承受高頻振動.臥式振動電機采用四塊扇形偏心塊作激振塊,調節同軸端兩塊偏心塊的夾角,可以從零至最大調節振動電機的激振力;立式振動電機,采用兩塊偏心塊作為激振塊,兩軸端各一塊,上軸端為固定偏心塊,下軸端為可調偏心塊.在上下偏心塊的外側各裝有一組附加塊,通過調節附加塊的數量,可以分級調節振動電機的激振力.
    振動電機通電旋轉,帶動電機軸兩端的偏心塊,產生慣性激振力,該力是空間回轉力,其幅值為Fm.
Fm=mrω2
m-偏心塊質量
r-偏心塊質心回轉軸心的距離，即偏心距
ω-電機旋轉角度頻率
ω＝2πn/60
n—振動電機振次
慣性激振力通過振動電機軸承,底腳或法蘭,傳遞給振動機械,就是該振動機械產生的激振力.

By special motor stator and rotor shaft line package, can withstand the high frequency vibration. The horizontal vibration motor adopts four quadrant eccentric block vibration blocks, adjust the Angle of coaxial end two pieces of eccentric block, can range from zero to maximum adjusting vibration motor vibration force;Vertical vibration motor, using two pieces of eccentric block as vibration blocks, each shaft end, shaft end is fixed on the eccentric block, the shaft end for adjustable eccentric block. On the outer edge of the eccentric block up and down each equipped with a set of additional pieces, by adjusting the number of additional pieces, can be hierarchical control vibration motor vibration force.
At the ends of the electric rotating vibration motor, drive motor shaft eccentric block, produce inertia vibration force, the force is space turning force, its amplitude is Fm.
Fm = Mr Omega 2
M - the quality of the eccentric block
R - the distance of the eccentric block centroid axis of rotation, the eccentricity
Omega - frequency motor rotation Angle
Omega = 2 PI n / 60
N, vibration motor vibration
Inertial vibration force through the vibration motor bearing, foot or flange, passed to the mechanical vibration, is that the vibration force produced by mechanical vibration.

YZDO系列振動電機技術參數、外形尺寸

Parameters and Boundary dimonsions

型號	激振力	功率	同步轉速	安裝尺寸				外形尺寸							重量
				A	B	H	K	AB	BB	G	E	F	HD	L
YZDP-0.7-2	700	0.075	3000	180	126	80	10	220	150	25	100	55	200	300	16
YZDP-1.5-2	1500	0.15		180	126	80	10	220	150	25	100	55	200	300	18
YZDP-2.5-2	2500	0.25		180	140	80	12	220	168	30	112	60	205	323	22
YZDP-5-2	5000	0.4		220	175	90	14	270	210	40	140	80	220	370	37
YZDP-8-2	8000	0.75		255	179	140	18	315	250	28	125	160	295	490	55
YZDP-10-2	10000	0.85		255	179	170	18	315	250	28	125	160	295	510	61
YZDP-16-2	16000	1.5		290	224	140	20	350	305	35	165	135	380	550	94
YZDP-20-2	20000	1.8		260	150	140	26	344	234	42	/	/	320	452	105
YZDP-30-2	30000	2.2		310	170	170	33	400	270	57	/	/	365	505	/
YZDP-1.2-4	1200	0.12	1500	180	126	80	10	220	150	25	100	65	200	300	17
YZDP-2.5-4	2500	0.18		180	140	80	12	220	168	30	112	70	205	330	27
YZDP-5-4	5000	0.25		220	175	108	14	270	210	40	140	80	240	390	42
YZDP-8-4	8000	0.4		225	179	140	18	315	250	28	125	160	295	490	61
YZDP-10-4	10000	0.6		225	179	140	18	315	250	28	125	160	295	510	61
YZDP-16-4	16000	0.75		290	244	170	20	350	305	35	165	135	380	550	107
YZDP-20-4	20000	1.1		290	244	170	20	250	305	34	165	135	380	550	135
YZDP-32-4	32000	1.5		346	178	200	30	445	310	40	115	200	435	540	154
YZDP-50-4	50000	2.2		390	155	220	33	480	315	45	55	225	472	580	212
YZDP-5-6	5000	0.4	1000	220	175	120	14	270	210	30	140	85	270	380	44
YZDP-8-6	8000	0.55		220	179	120	14	270	210	30	140	85	270	396	65
YZDP-10-6	10000	0.75		255	179	140	18	315	250	28	125	160	295	475	79
YZDP-15-6	15000	1		255	179	140	18	315	250	28	125	160	295	490	85
YZDP-18-6	18000	1.5		290	224	170	20	350	305	35	165	135	380	530	117
YZDP-20-6	20000	1.5		290	224	170	20	350	305	35	165	135	380	530	128
YZDP-25-6	25000	1.8		290	224	170	20	350	305	35	165	135	380	550	140
YZDP-30-6	30000	2.2		346	178	200	30	445	310	40	115	200	435	530	182
YZDP-40-6	40000	3		346	178	200	30	445	310	43	111	200	435	580	204
YZDP-50-6	50000	3.7		390	155	220	33	480	315	45	55	225	472	580	253
YZDP-75-6	75000	5.5		380	250	220	45	480	350	45	/	/	465	730	390
YZDP-100-6	100000	7.5		440	280	240	52	570	410	47	/	/	500	800	460
YZDP-10-8	10000	0.75	0.75	310	170	160	33	370	240	35	/	/	350	540	135
YZDP-20-8	20000	1.5		350	220	200	39	450	313	40	/	/	425	600	242
YZDP-30-8	30000	2.2		380	250	220	45	480	350	45	/	/	465	670	354
