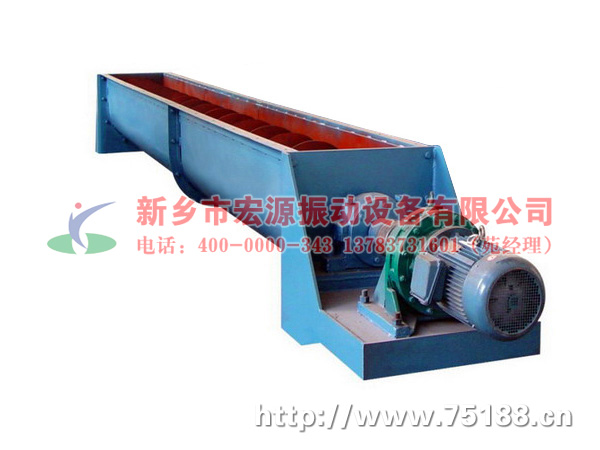

LS型螺旋輸送機

LS螺旋輸送機產品概述

    螺旋輸送機廣泛應用于建材、冶金、化工、電力、煤炭、機械、輕工、糧食及食品行業，適宜輸送粉狀、顆粒狀、小塊狀物料，如水泥、煤粉、糧食、化肥、灰渣、沙子、焦炭等；不宜輸送易變質、粘性大、易結塊的物料。螺旋輸送機工作環境溫度通常為-20～40℃，輸送物料的溫度一般為-20～80℃，螺旋輸送機適宜水平和小傾角布置，傾角以不超過15°為宜，如傾斜角度過大請選用GX系列螺旋輸送機，或與我公司技術部門聯系進行單獨設計。
    LS型螺旋輸送機等效采用ISO1050-75標準，設計制造符合ZBJ81005.1～2-88《 LS螺旋輸送機 》專業標準。LS型螺旋輸送機直徑由100mm～1250mm，共十二種規格,分為單驅動和雙驅動兩種形式，單驅動螺旋輸送機最大長度可達40m(特大型30m)，雙驅動螺旋輸送機采用中間斷開軸結構，最大長度可達80m(特大型60m)，螺旋輸送機長度級差每0.5m一檔，可根據需要選定，螺旋輸送機頭部軸承、尾部軸承置于殼體外部減少了灰塵對軸承室的侵入提高了螺旋機關鍵件的使用壽命。中間吊軸承采用滾動、滑動可互換的兩種結構，阻力小、密封性強、耐磨性好。滑動軸承的軸瓦有粉末冶金、尼龍和巴氏合金等多種材料供用戶根據不同的場合選用。吊軸承機外側置式油杯,便于集中加油潤滑。進出料口位置布置靈活,并增設電動型出料口，便于自動控制，還可根據用戶要求，配置測速報警裝置。

Product overview
   Screw conveyor is widely used in building material, metallurgy, chemical industry, electric power, coal, machinery, light industry, food and the food industry, is suitable for conveying powder, granulated and small lump materials, such as cement, coal, grain, chemical fertilizer, ash, sand, coke, etc.;Should not be transporting perishable materials, big viscosity, easy to agglomerate.Screw conveyor working environment temperature is usually - 20 ~ 40 ℃, the temperature of the conveying material is commonly - 20 ~ 80 ℃, screw conveyor is suitable for level and layout of the small Angle, inclination Angle with no more than 15 ° advisable, such as the Angle is too large, please choose GX series screw conveyor, or contact our technical department to design alone.

Type LS screw conveyor equivalent made ISO1050-75 standard, design and manufacture accord with ZBJ81005.1 ~ 2-88 LS screw conveyor professional standards.Type LS screw conveyor diameter from 100 mm to 1250 mm, a total of 12 kinds of specifications, can be divided into single and double drive two forms, single drive screw conveyor maximum length can reach 40 m (oversize 30 m), double drive screw conveyor with middle shaft structure, the maximum length of 80 m (oversize 60 m), the length of the screw conveyor differential every 0.5 m a, can choose according to need, screw conveyor head bearing, the tail bearing under the external reduce dust to the invasion of the bearing chamber improves the service life of screw machine key-module.Suspension bearing adopts rolling, sliding interchangeable among two kinds of structure, small resistance, sealing strong, good wear resistance.Sliding bearing shell powder metallurgy, nylon and babbitt and so on the many kinds of material selection for user according to different occasions.Lateral suspension bearing machine type oil cup, to facilitate centralized lubrication.Front-rear mouth position arranged flexibly, and adding type electric discharging mouth, convenient automatic control, can also according to user requirements, speed alarm device.

LS螺旋輸送機現場圖片

Pictures

LS螺旋輸送機工作特點

1、承載能力大、安全可靠。
2、適應性強、安裝維修方便、壽命長。
3、整機體積小、轉速高、確保快速均勻輸送。
4、密封性好、外殼采用無縫鋼管制作，端部采用法蘭互相連接成一體，剛性好。

Features
1, large carrying capacity, safe and reliable.
2, strong adaptability, easy installation and maintenance, long service life.
3, the machine is small in size, high speed, ensure rapid delivery uniformity.
4, good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.

LS螺旋輸送機產品特點

1、高效率的輸送：小直徑、高轉速、變螺距的螺旋體設計，確保產品在工作過程中順暢、快速、均勻上料。
2、隨意的布置：輸送機的外殼采用優質無縫鋼管通過法蘭各段連接為整體，整體剛性好，無論是水平，還是大傾角均可連續輸送，并可直接與其配套的設備連接固定，無需地基基礎，充分利用空間，移動、拆裝十分方便。
3、可靠的密封：潤滑密封可靠無滲漏，既無浪費物料現象，又創造了良好的工作環境。
4、多元化的聯接：進、出料口可采用萬向節、布袋、法蘭聯接方式，還可與我廠生產的蝶閥、插板閥組合聯接。
5、創新的設計：先進合理的設計，結合先進制造工藝和完善的質量保證體系，使其具有體積小，承載轉矩大、噪音低、不滲油等顯著優點。

Characteristic
1, high efficiency of delivery: small diameter, high speed, varying pitch helix design, ensure that the product in the process of work smooth, rapid and uniform loading.
2, random arrangement: conveyor of the shell is made of high quality seamless steel tube by flange for whole paragraphs connection, rigid good, the whole level, or can be continuous transmission of large dip Angle, and can be connected directly with matching equipment fixed, without foundation, make full use of space, mobile, tear open outfit is very convenient.
3, reliable sealing, lubrication reliable sealing with no leakage, no waste of materials, and created a good working environment.
4, diversified connection: inlet and discharging mouth can use universal joint, bag, flange connection, but also with our factory production of butterfly valve, flashboard valve combination connection.
5, innovative design, advanced and reasonable design, combined with advanced manufacturing technology and perfect quality assurance system, make it has small volume, carrying large torque, low noise, low permeability oil etc.

LS螺旋輸送機結構圖

ls螺旋輸送機技術參數

LS螺旋輸送機外形尺寸圖

Structures

LS螺旋輸送機進出料口尺寸圖

Feed port and discharge port

★我公司可根據用戶需要設計制造特殊型號規格的輸送機。
★我公司對所有技術資料、尺寸保留修改的權利，如實物與文中圖案不符，應以實物為準。
友情提示:螺旋輸送機不宜輸送易變質的、粘性大的、易結塊的物料，因為這些物料在輸送時會粘結在螺旋上，并隨之旋轉而不向前移動或者在吊軸承處形成物料的積塞，而使螺旋機不能正常工作。LS型螺旋機螺旋直徑從200毫米到500毫米，共有五種規格，長度從4米到70米，每隔0.5米一檔，選型時符合標準公稱長度，特殊需要可在選配節中另行提出。

★ My company can design and manufacture according to user needs special specifications of the conveyor.
★ For all my company reserves the right to modify technical data, size, such as material object does not accord with the design, the material shall prevail.
Helpful hints: screw conveyor is unfavorable and transportation of perishable materials, big viscosity, easy to agglomerate, because these materials in the transmission will be binding on the screw, and then rotate and does not move forward or in suspension bearing formation material product plug, and make the screw machine can't work normally.LS screw machine screw diameter from 200 mm to 500 mm, with a total of five kinds of specifications, the length from 4 meters to 70 meters, one every 0.5 meters, conform to the standard model selection of the nominal length, special needs can be separately in the matching section is put forward.
