移動式皮帶輸送機
DY系列可移動式皮帶輸送機產品概述
DY型可移動式皮帶輸送機是一種工效高，使用安全可靠，機動性好的連續輸送裝卸設備。主要用于裝卸地點經常變更動的場所，如：港口、碼頭、車站、煤場、倉庫、建筑工地、沙石料場、農場等，用來短途運輸及裝卸散料或單件重量100公斤以下的成件物品。DY型可移動式皮帶輸送機分為可升降型及不可升降型兩大類，輸送帶的運行靠電動滾筒驅動，整機的升降與運行均為非機動。
Product overview
DY type portable belt conveyor is a kind of high efficiency, the use of safe and reliable, flexibility good continuous transportation loading and unloading equipment.Its mainly used for loading and unloading location constantly changing places, such as ports, docks, stations, coal yard, warehouse, construction site, sand yard, farm, etc., used to short-distance transport and loading and unloading bulk or single weight 100 kg of the following items.DY type portable belt conveyor to divided into two categories: type can lift and lift, the operation of the conveyor belt on electric drum drive, the rise and fall of the whole machine and operation are the non-motor vehicle.
DY型可移動式皮帶輸送機適用于散狀物料或成件物品的短途運輸和裝卸工作。采用鋼管結構，輕巧美觀，機動性好。轉動裝置為電動滾筒，并配有充氣輪胎和鋼輪兩種行走輪。機長10米以上傾角可調。
DY type portable belt conveyor is suitable for the material or into a short-distance transport and loading and unloading of work items.Adopts steel structure, light and beautiful, good mobility.Rotating device for electric drum, and equipped with pneumatic tyre and steel wheel two walking wheels.Captain more than 10 meters Angle is adjustable.
我公司可根據客戶詳情定制設，歡迎致電：13783731601，咨詢?cè)斍椋?br /> My company can customize according to customer's details, please contact: 13783731601, the advisory details.

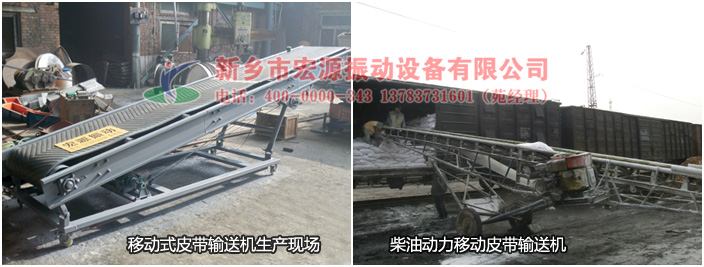

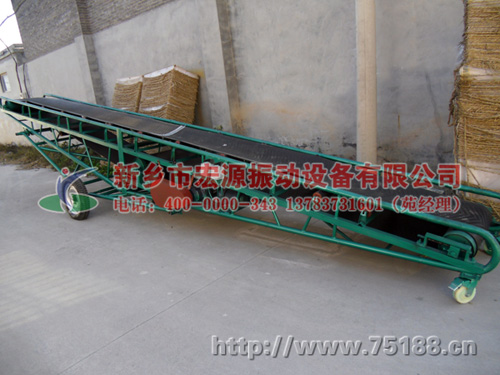

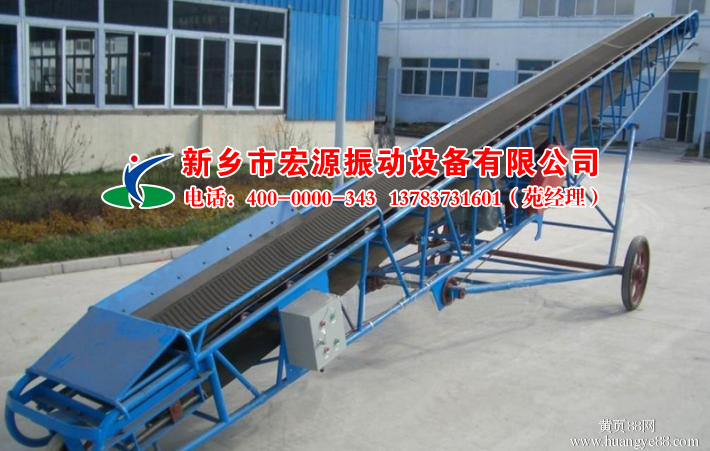

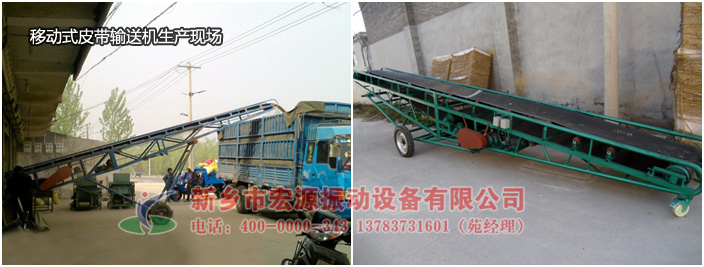

DY移動式皮帶輸送機現場圖片
Working site
DY系列可移動皮帶式輸送機主要特點
DY型移動式膠帶輸送機性能及主要技術參數與德國福蘭德和蒂森公司的產品相當，主要特點是采用高精度，硬具面齒輪，其承載能力高，(比軟具面具輪提高2-3倍)；壽命長(可達10年)；結構聚湊，占地面積小(可減少50%以上)；重時輕，體積小(可降低50%)；尤其是垂直傳動結構形式，更適于煤礦井下礦山運輸機械上使用。
Features
DY movable belt conveyor performance and main technical parameters and to Germany and thyssen company's products, main characteristic is to use high precision, hard with surface gears, its carrying capacity is high, higher than that of soft round with a mask (2-3 times);Life is long (up to 10 years);Gather together structure, cover an area of an area small, can reduce more than 50%);When weight is light, small volume (50% reduction);Especially vertical transmission structure form, more suitable for the coal mine mine transport machinery in use.
DY系列可移動帶式輸送機技術參數表
Parameters
表一：
Table 1
|
項目 |
DY4031 |
DY4051 |
DY4071 |
DY10101 |
|
|
機長（米） |
3 |
5 |
7 |
10 |
|
|
帶寬（毫米） |
400 |
400 |
400 |
400 |
|
|
帶速（米/秒） |
1.6 |
1.6 |
1.6 |
1.6 |
|
|
最大輸送高度（米） |
1.2 |
1.2 |
1.3 |
1.29 |
|
|
輸送能力 |
米3/小時 |
90 |
90 |
90 |
90 |
|
噸/小時 |
80 |
80 |
80 |
80 |
|
|
傾斜角度（度） |
17° |
10° |
8° |
5°58′ |
|
|
電動滾筒 |
型號 |
DY1.2 |
DY1.2 |
DY1.2 |
DY1.2 |
|
功率KW |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
總重量（公斤） |
320 |
391 |
467 |
592 |
|
表二：
Table2
|
項目 |
DY5051 |
DY5071 |
DY50101 |
DY50102 |
DY50102A |
DY50151 |
DY50152 |
DY50152A |
|
|
機長m |
5 |
7 |
10 |
10 |
10 |
15 |
15 |
15 |
|
|
帶寬mm |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
500 |
|
|
帶速（米/秒） |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
|
|
最大輸送高（米） |
1.63 |
1.59 |
1.77 |
4.52 |
4.52 |
1.61 |
6.32 |
6.32 |
|
|
輸送能力 |
米3/小時 |
160 |
160 |
160 |
125 |
125 |
160 |
125 |
125 |
|
噸/小時 |
145 |
145 |
145 |
112 |
112 |
145 |
112 |
112 |
|
|
傾斜角度 |
13°59′ |
9°16′ |
6.5° |
10°～22° |
10°～22° |
3.81° |
10°～22° |
10°～22° |
|
|
電動滾筒 |
型號 |
DY1.4 |
DY1.4 |
DY1.4 |
DY1.5 |
DY1.3 |
DY1.4 |
DY1.6 |
DY1.3 |
|
功率（KW） |
2.2 |
2.2 |
2.2 |
3.0 |
1.1 |
2.2 |
4.0 |
1.1 |
|
|
總重量（公斤） |
518 |
604 |
892 |
1126 |
1071 |
1225 |
1491 |
1491 |
|
表三：
table3
|
項目 |
DY6551 |
DY6571 |
DY65101 |
DY65102 |
DY65102A |
DY65151 |
DY65152 |
DY65152A |
|
|
機長 |
5 |
7 |
10 |
10 |
10 |
15 |
15 |
15 |
|
|
帶寬 |
650 |
650 |
650 |
650 |
650 |
650 |
650 |
650 |
|
|
帶速（米/秒） |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
|
|
最大輸送高度（米） |
1.55 |
1.52 |
1.82 |
4.56 |
4.56 |
1.85 |
6.48 |
6.48 |
|
|
輸送能力 |
m³/h |
290 |
290 |
290 |
224 |
一 |
290 |
224 |
一 |
|
t/h |
265 |
265 |
265 |
200 |
200 |
265 |
200 |
200 |
|
|
傾斜角度（度） |
13°29′ |
8°53′ |
6.5° |
10°～22° |
10°～22° |
4.32° |
10°～22° |
10°～22° |
|
|
電動滾筒 |
型號 |
DY1.9 |
DY1.9 |
DY1.10 |
DY1.11 |
DY1.8 |
DY1.10 |
DY1.12 |
DY1.8 |
訂貨須知:定貨時需注明：帶速、帶寬、輸送距離、輸送量、傾斜角度、物料特性、工作環境、堆積角度等基本技術參數。
Ordering information: note the time of tape speed, bandwidth, transmission distance, throughput, oblique Angle, material characters, work environment, the basic technical parameters such as Angle of accumulation.
★我公司可根據用戶需要而設計制造特殊型號規格的皮帶式輸送機。
★我公司對所有技術資料、尺寸保留修改的權利，如實物與文中圖案不符，應以實物為準。
★My company can design and manufacture according to user needs special specifications of belt conveyor.
★For all my company reserves the right to modify technical data, size, such as material object does not accord with the design, the material shall prevail.
