HB型鏈板、鏈斗式輸送機
HB型鏈板、鏈斗式輸送機概述
Product overview
HB型鏈板、鏈斗式輸送機是一種固定輸送設備，該系列輸送機有如下特點： 1、適應性強，本機適用于不帶粘性的散狀物料及粒狀、塊狀物料的輸送，尤其適用于塊狀較大，且具有鋒利棱角，灼熱的（如水泥熟料等）物料的輸送，而且在輸送過程中可同時完成冷卻、清洗等工藝過程； 2、整機裝置緊湊、安裝、調試、維修方便； 3、鏈板、鏈斗結構合理、剛性好，耐沖擊性強； 4、以滾動磨擦代替滑動磨擦、運行阻力低； 5、鏈板機適用0°～15°傾角，鏈斗機輸送傾角最大可達45°； 6、輸送距離≤30m時，可采用環鏈及板鏈作牽引件，輸送距離>30m時，為防止滑動，需采用板鏈作牽引件。
HB type chain plate, chain bucket conveyor is a kind of fixed conveying equipment, this series of machine has the following characteristics: 1, strong adaptability, the machine is suitable for adhesive not bulk conveying and granular, block material, especially suitable for block is larger, and has sharp edges, hot (such as cement clinker) material transport, and it can be finished at the same time in the process of conveying cooling and cleaning process, such as;2, the machine has compact device, convenient installation, commissioning, maintenance;3, chain plate, chain bucket reasonable structure, good rigidity, strong impact resistance;4, to rolling friction instead of sliding friction, low running resistance;5, chain plate for 0 ° ~ 15 ° inclination, chain bucket machine delivery up to 45 ° Angle;6, conveying distance 30 m or less, link chain and plate chain can be used for traction, conveying distance > 30 m, to prevent sliding, with the plate chain for traction.

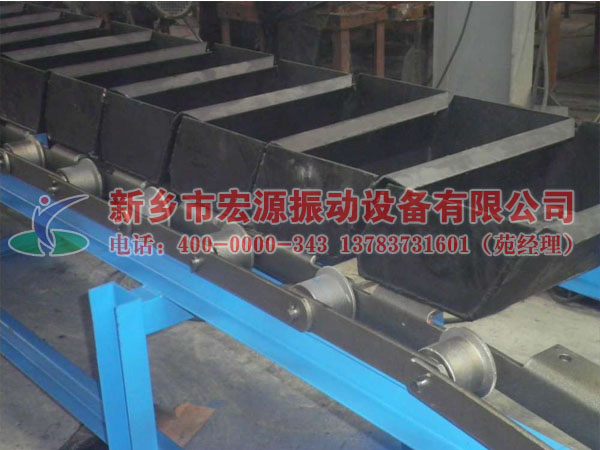

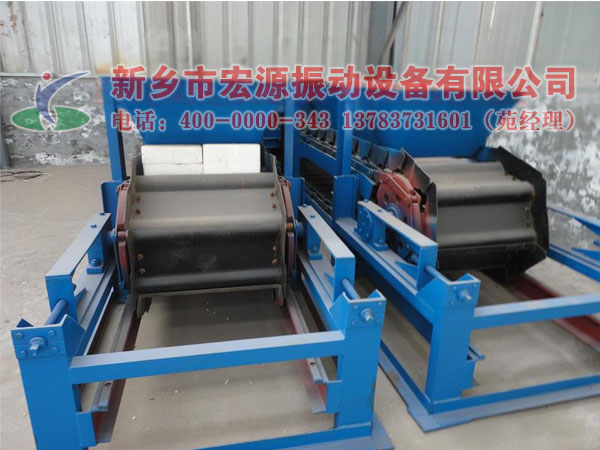

鏈板輸送機
HB型鏈板、鏈斗式輸送機外形結構
Structures
1、鏈板機板沿高一般為80～120mm，視輸送物料及輸送量在設計時可適當變動，其物料是連續在鏈板上存放，為防止其過多漏料，其上傾角度一般不大于15°，其外型結構見下圖。
2、鏈斗機的物料是存放在單鏈斗里進行輸送，其在輸送過程中，依靠重力及滾輪作用，鏈斗總處于水平狀態，故其可用于較大傾角輸送物料過程，其最大上傾角可達到45°，共外型結構見下圖。
1, chain plate plate along the high average for 80-120 mm, depending on the conveying material and throughput can be appropriate when the design change, its material is continuous on the chain plate storage, to prevent the excessive leakage material, are rarely more than 15 ° inclination angle, its appearance structure below.
2, chain conveyor for conveying materials is stored in a single bucket, its in the process of conveying, rely on gravity and roller, bucket chain always is in a state level, so the process of conveying material can be used in large dip Angle, the maximum Angle can reach 45 °, exterior structure below.

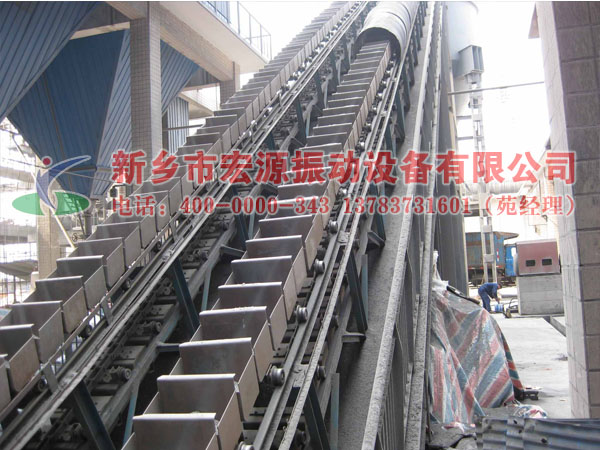

鏈斗輸送機

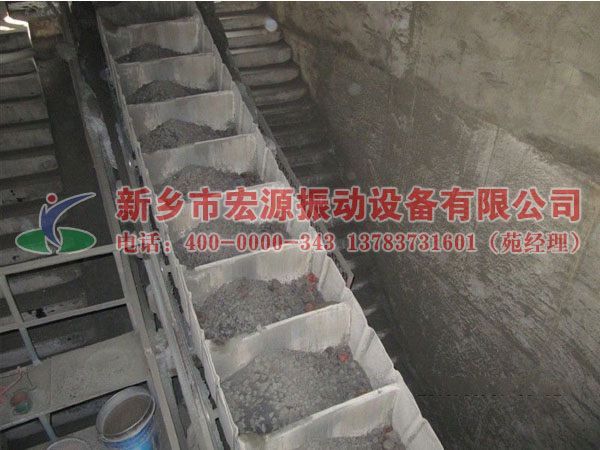

鏈斗輸送機
HB鏈板輸送機產品特點：
1．輸送效率高 物料在鏈?zhǔn)捷斔蜋C(jī)的機槽內呈整體流動，因而較小的機槽空間可以輸送大量的物料，設備的外形尺寸也相應較小。
2．能耗低 該機借助物料內磨擦力進行輸送，輸送鏈與機殼無磨擦運動。在同等輸送量和較長輸送距離的條件下，該機的電力消耗比螺旋輸送機低40%左右。
3．故障率低 輸送鏈上的滾子在導軌上滾動，輸送鏈與機殼無磨擦。鏈條采用合金鋼熱處理加工制成，其正常使用壽命3年左右，運行中故障率低。除頭尾軸承外，輸送機中無潤滑點。
Features
1. High transmission efficiency material in chain conveyor in slot machine shows the overall flow, thus the smaller machine groove space can transport a large number of materials, size and the shape of the device smaller accordingly.
2. The consumption of low The machine with the aid of material in friction in transmission, conveyor chain and chassis no friction movement.Under the same throughput and long conveying distance, under the condition of the machine electricity consumption of about 40% lower than the screw conveyor.
3. The failure rate is low roller rolling on the guide rail, conveyor chain conveyor chain and chassis no friction.Made of chain using alloy steel heat treatment process and the normal service life of 3 years or so, in the operation of the low failure rate.Besides end bearing, no lubrication point in the conveyor.
鏈斗輸送機

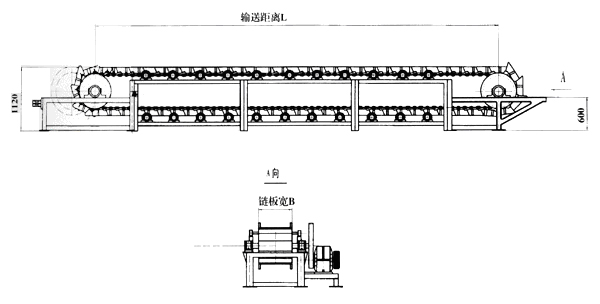

HB鏈板式輸送機結構示意圖
Pictures of structures
HB型鏈板、鏈斗式輸送機注意事項
Notes
1 、鏈斗機、鏈板機主要用于輸送磨損強，溫度高的物料，用戶訂貨時需注明型號，兩輪中心距，傾斜角度，最大輸送量等工藝參數。
2、動力裝置在鏈斗（板）機頭部、左、右裝可根據用戶要求變動。
3、輸送速度以8～10m/min為宜，太低影響輸送量，太高噪音大，磨損增大。且HB800、HB1000適宜輸送堆密度較小的物料。
1, chain conveyor, chain plate is mainly used for conveying strong abrasion, high temperature materials, when you place an order to indicate the type, two rounds of center distance, Angle and maximum throughput of the process parameters.
2, power plant in the bucket (plate), left, right nose department can change according to user requirements.
3, transmission speed with 8 ~ 10 m/min advisable, low influence throughput, high noise, wear and tear.And HB800, HB1000 is suitable for conveying materials bulk density smaller.
訂貨須知：
1、傾角輸送時，傾角在5°左右，輸送量會降低3%，傾角左右在10°左右，輸送量會降低12%，傾角在15°左右，輸送量會降低20%。
2、輸送物料溫度用普材不大于200℃，如鏈板及牽引鏈用耐高溫材料（如高鉻高鎳鋼）制造，物料溫度可達400℃。
3、最大物料粒度不超過物料總量的15%，當物料塊度較大且較多時，會影響輸送量。
4、如用在清洗工藝中，應有清洗水槽（液體槽）把水收集。
Ordering instruction
1, inclination conveying, at about 5 ° inclination, throughput decreases 3%, about dip in 10 ° or so, throughput decreases 12%, the Angle of about 15 °, the throughput will be reduced by 20%.
2, conveying material with grade wood is not greater than 200 ℃ temperature, such as chain plate and traction chain with high temperature resistant material, such as high chromium and high nickel steel manufacturing, material temperature can reach 400 ℃.
3, maximum particle size does not exceed 15% of the total material, when material are too many and more, can affect throughput.
4,In the cleaning process, should be clean water tank (liquid tank) to collect water.
