SCG系列耐高溫水平振動輸送機
SCG系列耐高溫水平振動輸送機產品概述
SCG型長距離高溫物料振動輸送機廣泛應用于礦山、冶金、建材、煤炭、化工、糧食、醫藥等行業且溫度在300℃ 以下的各種粉狀、粒狀、塊狀及其混合物等物料的輸送。它是一種通用性很強且結構先進的高溫物料振動輸送設備。例如：水泥行業的原料、中間半成品及成品的輸送，化工行業固體原料、半成品的輸送，采掘行業礦石、精礦與尾礦的輸送等等。它是一種通用性很強且結構先進的振動輸送設備。
Product overview
SCG type long and high temperature material vibrating conveyor is widely used in mining, metallurgy, building materials, coal, chemical industry, food, medicine, etc, and the temperature was below 300 ℃ of all kinds of powder, granular, block and its mixture material conveying.It is a kind of strong commonality and advanced structure of high temperature material conveying equipment vibration.For example, the cement industry of raw materials, semi-finished products and finished products among transportation, chemical industry raw materials, semi-finished products delivery, solid ore mining industry, concentrate and tailings transportation and so on.It is a kind of strong commonality and advanced structure vibration conveyor equipment.
Product overview
SCG type long and high temperature material vibrating conveyor is widely used in mining, metallurgy, building materials, coal, chemical industry, food, medicine, etc, and the temperature was below 300 ℃ of all kinds of powder, granular, block and its mixture material conveying.It is a kind of strong commonality and advanced structure of high temperature material conveying equipment vibration.For example, the cement industry of raw materials, semi-finished products and finished products among transportation, chemical industry raw materials, semi-finished products delivery, solid ore mining industry, concentrate and tailings transportation and so on.It is a kind of strong commonality and advanced structure vibration conveyor equipment.

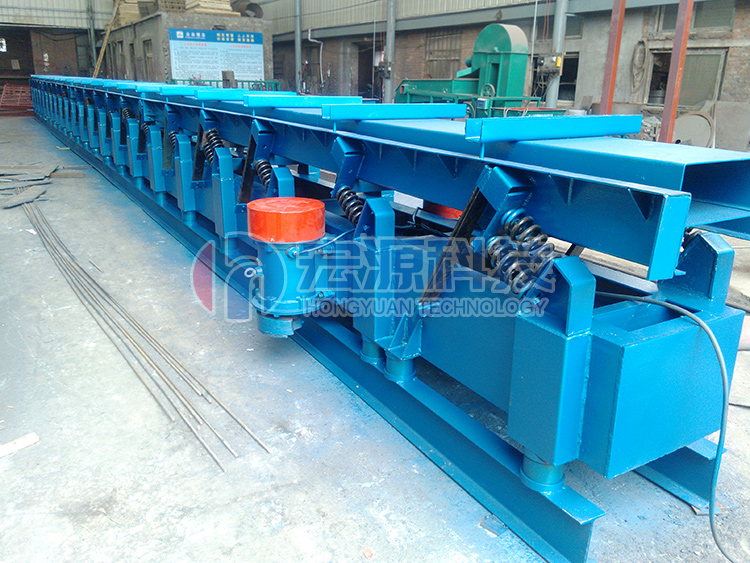

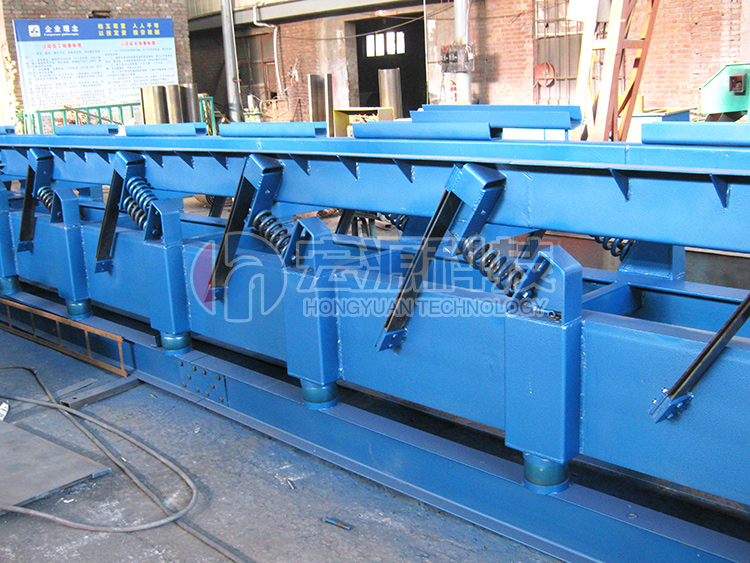

高溫振動輸送機生產現場
Production site
SCG系列耐高溫水平振動輸送機工作原理
SCG系列長距離振動輸送機采用兩臺振動電機作為激振動源，運用自同步原理，兩臺振動電機反向轉動，使輸送機底部平衡架產生往復振動，經過主振簧與導向板簧的作用，帶動上部輸送槽振動，從而達到輸送物料的目的。SCG型長距離振動輸送機有敞開式、封閉式兩種，料槽橫截面可以做成圓形、矩形和梯形等多種型式。料槽的進料和出料也可根據需要制成一點進料、一點出料，一點進料、多點出料，多點進料、一點出料等多種型式。輸送距離較長時可用多臺輸送機連接起來輸送。SCG型長距離振動輸送機料槽使用橡膠彈簧或鋼簧支承，依靠固定在料槽上的兩臺振動電機的自同步運轉，使料槽產生直線振動。
Working principles
SCG long vibration conveyor series adopts two vibration motor as vibration source, using the principle of self synchronous, two vibration motor reverse rotation, reciprocating vibration of the balance of the bottom of the conveyor frame after the reed and the role of the guide plate spring, drives the upper conveying groove vibration, so as to achieve the purpose of conveying material.SCG type long and vibrating conveyor with open and closed two, chute cross section can make a circle, rectangle and trapezoid etc. Various type.Chute feed and discharge can be made into a feed according to need, selects a material, feed, more points expected, multipoint feeding and selects a material type.Longer transmission distance available connect more than one conveyor conveyor.SCG type long vibration conveyor rubber spring manger or steel spring bearing, relying on fixed on the feeding trough since the synchronous running of the two vibrating motors, the chute produce linear vibration.
Working principles
SCG long vibration conveyor series adopts two vibration motor as vibration source, using the principle of self synchronous, two vibration motor reverse rotation, reciprocating vibration of the balance of the bottom of the conveyor frame after the reed and the role of the guide plate spring, drives the upper conveying groove vibration, so as to achieve the purpose of conveying material.SCG type long and vibrating conveyor with open and closed two, chute cross section can make a circle, rectangle and trapezoid etc. Various type.Chute feed and discharge can be made into a feed according to need, selects a material, feed, more points expected, multipoint feeding and selects a material type.Longer transmission distance available connect more than one conveyor conveyor.SCG type long vibration conveyor rubber spring manger or steel spring bearing, relying on fixed on the feeding trough since the synchronous running of the two vibrating motors, the chute produce linear vibration.
SCG系列耐高溫水平振動輸送機視頻展播
Animation shownSCG系列耐高溫水平振動輸送機產品特點
1.即可全封閉輸送，消除粉塵污染，也可敞開輸送；
2.輸送量大、隔熱效果好，不需冷卻裝置，耗電少；
3.結構簡單、調試容易、易損件品種少、維修方便；
4.啟動、停機迅速、運轉平穩，隔振性能好、燥音小；
5.安裝方便，不需專用地基及地角螺栓，便于移動位置；
6.單機輸送機距離可達20米，多機軟連接可隨需要任意延長；
7.可以多點進、卸料，適宜于水泥熟料及礦渣庫底、庫頂輸送。
Features
1.Can be totally enclosed conveying, eliminate the dust pollution, also can open delivery;
2. high capacity, good insulation effect, without cooling device, less consumption;2.輸送量大、隔熱效果好，不需冷卻裝置，耗電少；
3.結構簡單、調試容易、易損件品種少、維修方便；
4.啟動、停機迅速、運轉平穩，隔振性能好、燥音小；
5.安裝方便，不需專用地基及地角螺栓，便于移動位置；
6.單機輸送機距離可達20米，多機軟連接可隨需要任意延長；
7.可以多點進、卸料，適宜于水泥熟料及礦渣庫底、庫頂輸送。
Features
1.Can be totally enclosed conveying, eliminate the dust pollution, also can open delivery;
3. Simple structure, easy to debug, the vulnerability of small variety, convenient maintenance;
4. Start and stop quickly, smooth operation, good performance of vibration isolation, noise small,;
5. Easy installation, without special foundation and stude screws, easy to move;
6. Single conveyor distance of 20 meters, multimachine soft connection can follow need any longer;
7. Can be more inlet and discharge, suitable for cement clinker and slag bottom, top conveying library.
SCG系列耐高溫水平振動輸送機使用范圍
SCG型長距離高溫物料振動輸送機廣泛適用于建材、治金、化工、采煤采礦、機械制造、煤炭、煙草、糧食、醫藥等行業。主要用于粉狀、粒狀、塊狀及其混合品等物料的輸送。例如：水泥行業的原料、中間半成品及成品的輸送，化工行業固體原料、半成品的輸送,采掘行業礦石、精礦與尾礦的輸送等作業上。
Applications
Applications
SCG type long and high temperature material vibrating conveyor is widely used in building material, metallurgy, chemical industry, coal mining, machinery manufacturing, coal, tobacco, food, pharmaceutical and other industries.Its mainly used in powder, granular, block and its hybrids such as the material of conveyor.For example, the cement industry of raw materials, semi-finished products and finished products among transportation, chemical industry conveying of solid raw materials, semi-finished products, mining industry ore, concentrate and tailings transportation etc.
SCG系列耐高溫水平振動輸送機技術參數表
Parameters| 型號 | SCG300 | SCG400 | SCG600 | SCG800 |
| 單機輸送距離 | 5-25 | 8-25 | ||
| 輸送產量（T/H） | ≤15 | ≤25 | ≤40 | ≤60 |
| 電動功率（TW） | 3-7.5 | 5.5-15 | ||
| 設備每米重量（KG/M） | 300 | 500 | 700 | 800 |
| 物料性質 粒度（MM） | 0.5<D<100 | 0.5<D<200 | ||
| 物料性質 溫度（℃） | <300 | |||
| 物料性質 含水量及粘性 | 含水量小于5%的非粘性、非易燃易爆物料 | |||
2.若輸送其它物料時,可參照下列公司換算產量 Q=a*Q’Qλ/1.6 a-折減系數約為0.5∽1。粉狀物料取小值,塊裝物料取大值。 Q’-表中所示產量λ-輸送物料的比重。
Note: 1. The transport production is medium weight is 1.6 t/m 3, determination of cement clinker temperature less than 300 ℃.
2. If transporting other materials can refer to the following company conversion output Q = a * Q Q 'lambda / 1.6 a - reduction factor of about 0.5 ∽ 1.Powder material of little value and of great value in block material.Q '- shown in the table lambda - the proportion of conveying material production.
