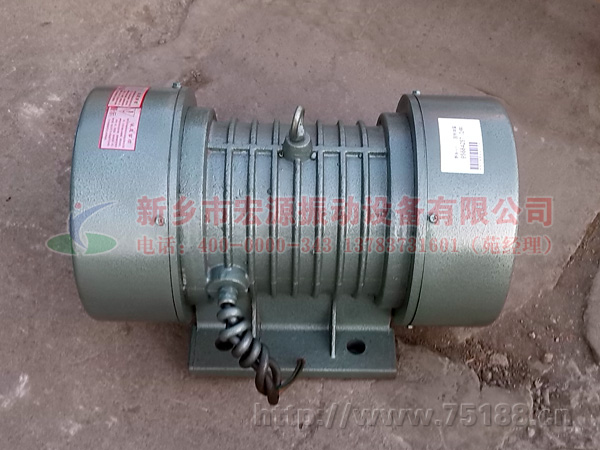

VB振動電機
VB vibration motor as vibration source of all kinds of vibration of mechanical equipment, such as vibrating feeder, vibrating conveyor, vibrating ore drawing machine, vibration shakeout machine, vibrating screen machine, vibration of silo block, etc., are widely used in electric power, building materials, coal, mining, metallurgy, chemical industry, light industry, casting and other industries.
VB振動電機主要技術特點
1.激振力與出力配合適當，機體質量輕、體積小。
2.因利用平穩的回轉產生振動，噪聲低。
3.全封閉結構，可在無防爆要求的粉塵條件下工作。
4.使用壽命長，軸承壽命2極達5000小時，4、6、8極達10000小時。
5.只需調節偏心塊夾角，就可以無級調整激振力大小，滿足各種工作需求。
6. 可多機組合成各種振動形式，以滿足各種作業要求。
7. 機種豐富，規格齊全，能滿足各類振動機械的工作需要。
8.VB系列振動電機，功率范圍0.12～25KW，2、4、6、8極，激振力為2.5～300KN，共計五十余種規格型號。
Features
1. With the help of proper exciting force and power, the body weight, small volume.
2. Because of using smooth rotation produces vibration, low noise.
3. The product is fully closed structure, can work under the condition of no dust explosion-proof requirements.
4. Long service life, bearing life of 5000 hours, 2, 4, 6, 8, 10000 hours.
5. Need to adjust the Angle of the eccentric block, it can be stepless adjustment of vibration force size, meet the demand of all kinds of work.
6. Unit can be more than the synthesis of various vibration mode, in order to meet the various requirements.
7. Rich model, complete specifications, which can meet the work needs of all kinds of mechanical vibration.
8. VB series vibrating motor, power range from 25 to 0.12 kw, 2, 4, 6, 8, the excitation of 2.5 ~ 300 kn, a total of more than 50 kinds of specifications.

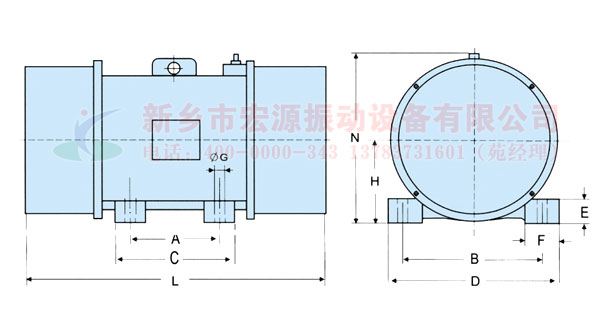

VB系列振動電機外形尺寸圖
Boundary dimension
VB系列振動電機技術參數
Parameters
