ZSG系列高效振動篩
ZSG高效振動篩產品概述
ZSG型系列高效振動篩是一種應用于礦山、冶金、煤炭、電力、建材、耐火材料等行業大塊狀物料及中小顆粒物料的篩分設備。該產品 具有體積小、重量輕，能耗低、便于安裝及工藝布置等特點，采用節能振動電機作振動源，橡膠彈簧支撐并隔振，處理量大，篩分效率高，篩網有較大的安裝傾角,拼塊組裝篩板，更換方便，使用壽命長。
Product overview
ZSG series high efficient vibrating screen is a kind of applied in mining, metallurgy, coal, electric power, building materials, refractory materials and other large and medium and small granular material screening equipment.The product has small volume, light weight, low energy consumption, easy to install and the characteristics of the process equipment layout, adopting energy-saving vibration motor as vibration source, rubber spring support and vibration isolation, large quantity, high screening efficiency, the installation Angle of the screen has a large, block assembly sieve plate, easy to change, long service life.
ZSG高效振動篩視頻展播
Animation shownZSG高效振動篩特點
(1)體積小，篩分能力大；
(2)重量輕，便于安裝及工藝布置；
(3)能耗少，可節約大量能源；
(4)價格低，備件量極少：
(5)結構簡單，造型美觀；
(6)篩網由小塊拼裝，且更換極為簡便。
Features
(1) small size, high screening ability;
(2) light weight, easy to install and process arrangement;
(3) less energy consumption, can save a lot of energy.
(4) the price is low, less quantity of spare parts:
(5) simple structure, beautiful appearance;
(6) screen mesh consists of small pieces, assembled and replacement is very simple.

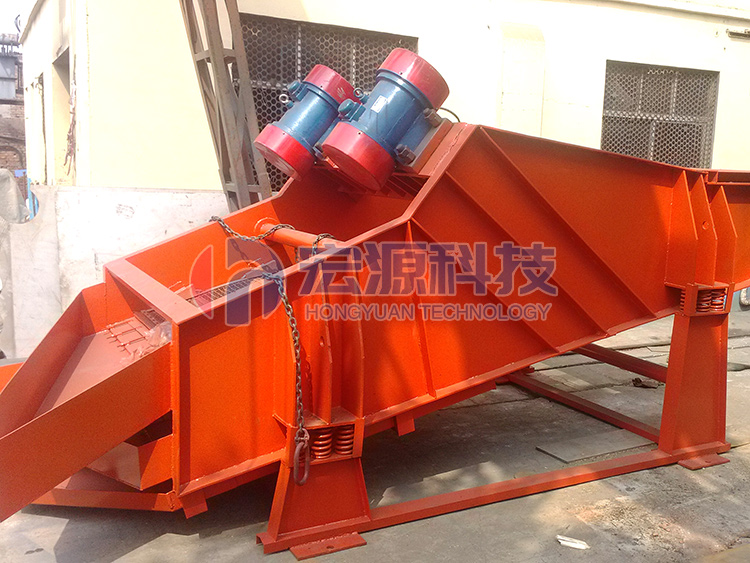

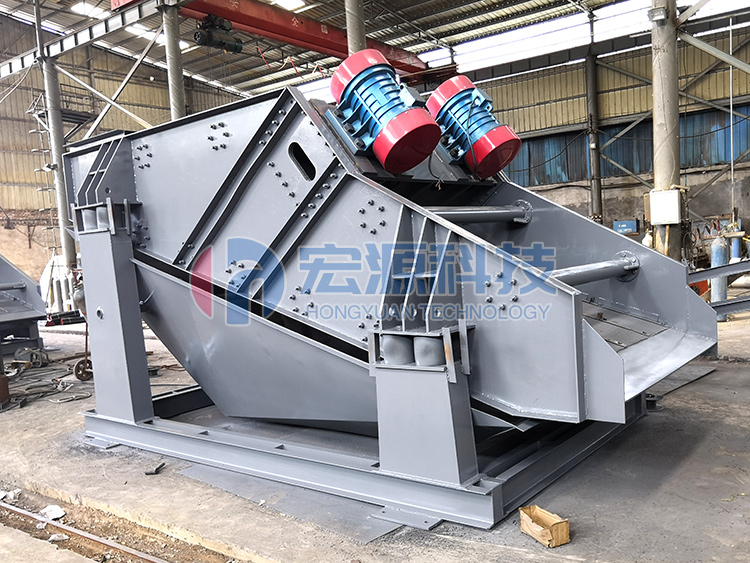

ZSG高效振動篩現場圖片
高效振動篩主要技術參數
Parameters| 型號 | 篩分能力 | 電壓 | 功率 | 振頻 | 有效篩面(m2) | 雙振幅 | |
|---|---|---|---|---|---|---|---|
| 粒度mm | T/h | V | kw | 次/min | |||
| ZSG-10×20 | ≤250 | 10-200 | 380 | 1.5×3 | 960 | 2 | 6-8 |
| ZSG-10×30 | 15-250 | 380 | 2.2×2 | 960 | 3 | ||
| ZSG-10×30 | 20-350 | 380 | 3.7×2 | 960 | 4.5 | ||
| ZSG-10×40 | 25-400 | 380 | 3.7×2 | 960 | 6 | ||
| ZSG-10×50 | 30-500 | 380 | 5.5×3 | 960 | 7.5 | ||
| ZSG-10×50 | 50-500 | 380 | 5.5×2 | 960 | 10 | ||
| ZSG-10×60 | 60-500 | 380 | 7.5×2 | 720 | 12 | ||
| ZSG-10×70 | 65-600 | 380 | 7.5×2 | 720 | 14 | ||
| ZSG-10×80 | 65-600 | 380 | 7.5×2 | 720 | 16 | ||
