不銹鋼旋振篩

不銹鋼旋振篩產品概述

    該系列振動篩的基本原理是利用電機軸上下安裝的重錘（不平衡重錘），將電機的旋轉運動轉變?yōu)樗�平、垂直、傾斜的三次元運動，再把這個運動傳遞給篩面，使物料在篩面上做外擴漸開線運動，故該系列振動篩稱之為旋振動篩。旋振篩具有物料運行的軌跡長，篩面利用率高等優點，調節上、下兩端重錘的相位角，可改變物料在篩面上的運動軌跡.可以對物料進行精篩分、概率篩分等。

    如圖該旋振篩材質為不銹鋼，更加適合食品、醫藥、化工等行業。
Product overview
By means of hammer(unbalance hammer)mounted along the motor shaft, HYS Series 3-D Vibrating Screens convert the rotation of the motor into a 3-D movement, i.e. horizontal, vertical and inclined movement, and then the 3-D movement is transferred to the screen surface, which leads to an involutes movement of the materials on the screen surface. That’s why it is also called the Rotary Vibrating Screen.Rotary Vibrating Screen can handle the material into the Precision Screening or Probability screening by adjust the upper and lower ends of the phase angle of the hammer so as to change the movement trajectories of materials on the screen surface.It has the feature of long trajectory of materials and high utilization rate of screen surface.

As shown in pictures the material of vibrating screen is stainless steel,it suitbal for food,medicine,chemical engineering and so on.

不銹鋼旋振篩實機圖片

Photos

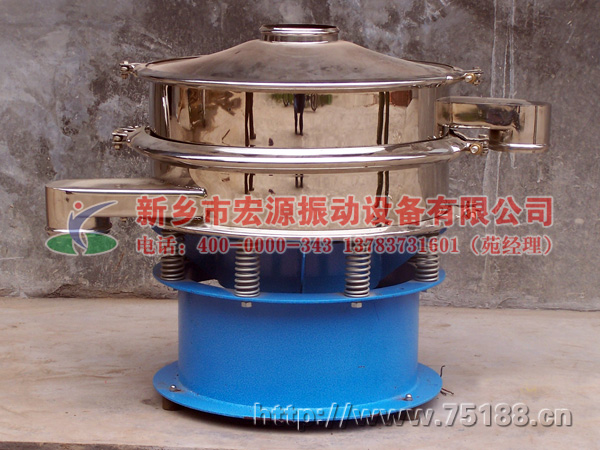

接觸物料部分為304不銹鋼
 part contact with the material is 304 stainless steel

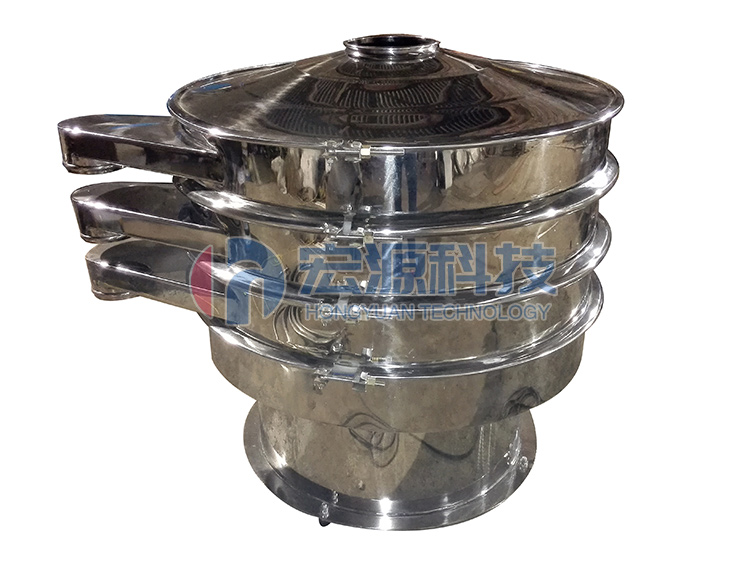

全不銹鋼材質旋振篩
Stainless steel rotary vibrating screen

不銹鋼旋振篩適用行業

化工行業：樹脂、涂料、工業藥品、化妝品、油漆、中藥粉等。
食品行業：糖粉、淀粉、食鹽、米粉、奶粉、豆?jié){、蛋粉、醬油、果汁等。
金屬、冶金礦業：鋁粉、鉛粉、銅粉、礦石、合金粉、焊條粉末、二氧化錳、電解銅粉、電磁性材料、研磨粉、耐火材料、高嶺土、石灰、氧化鋁、重質碳酸鈣、石英砂等。
公害處理：廢油、廢水、染整廢水、助劑、活性碳等。

Applications
Chemical industry: resin, coatings, industry, medicine, cosmetics, paint, powder, etc.
The food industry: sugar powder, starch, salt, rice flour, milk powder, soybean milk, egg powder, soy sauce, juice, etc.
Metal, metallurgy, mining, aluminium powder, lead powder, copper powder, ore, electrode powder, alloy powder, manganese dioxide, electrolytic copper powder, electric magnetic material, polishing powder, refractory material, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.
Pollution treatment, waste oil, waste water, dyeing wastewater, additives, activated carbon, etc.

不銹鋼旋振篩主要特點　

　　　 1. 效率高、設計精巧耐用，任何粉類、粘液均可篩分。
　　　 2. 換網容易、操作簡單、清洗方便。
　　　 3. 網孔不堵塞、粉末不飛揚、可篩至500目或0.028mm。
　　　 4. 雜質、粗料自動排出，可以連續作業。
　　　 5. 獨特網架設計，篩網使用時間長久，換網快只需3-5分鐘。
　　　 6. 體積小，不占空間移動方便。
　　　 7. 篩機最高可以達到五層，建議使用三層。

Features
 1.High efficiency, refined design, duration, any powders and mucilage are screening.
 2.easy to replace the mesh, the operation is simple, easy to clean.
 3.Nurture mesh plug, powder not float, up to 500 mesh or 0.028 mm.
 4.Impurity, coarse material automatic discharge, can continuous operation.
 5.Unique network frame design, screen mesh long using time, change mesh for only 3 to 5 minutes fast.
 6. Small volume, does not occupy a space,move easily.
 7.Screen machine up to five layers, it is recommended to use three layers.

不銹鋼旋振篩特色與優勢

    子母式、沖壓式網架設計，3-5分鐘篩網更換即可完成，換網用2人即可，整機、篩網壽命長，耗能少、維修費用低。S49-A三元旋振篩振動源產生的三次元振動，強大而平穩，設備可安裝到任何所需位置且便于移動。

Characteristic and advantage
 Lash type, punching type network design, mesh replacement for 3 to 5 minutes to complete, two people is ok.The whole machine, screen mesh with long service life, less energy consumption, low maintenance cost.S49 - A rotary vibration screen of three dimensional vibration of the vibration source of the strong and stable, the equipment can be installed to any desired position and easy to move.

不銹鋼旋振篩技術參數簡表

Parameters

不銹鋼旋振篩一般結構圖

Structures

不銹鋼旋振篩設備振動力的調整

    通過改變振動電機的上下2塊偏心塊的夾角和質量，振動電機即可帶動設備產生不同大小的振動力，從而改變水平或垂直方向的振動幅度，進而改變篩分的流量和效率。下面表述幾個角度調整的一般特征。


Vibrating Force Adjustment
    By changing the vibration motor fluctuation two eccentric blocks Angle and quality, vibration motor can drive the device to produce different sizes of vibration, and transform the vibration amplitude of the horizontal and vertical direction, and change the flow rate and the efficiency of screening.The following describe general features of several Angle adjustment.

0度 適用于對原料進 行大量的粗篩分	35度 適用于大多數原 料的篩分	60度 適用于精細原料 的精篩分	90度 特殊用途

旋振篩更換篩網方法

Ways of chaging the mesh
