立式氣流篩分機
QS系列氣流篩分機(氣流篩)產品概述
product overview
QS型氣流篩分機是一種對微細粉進行有網篩分的高精度篩分設備，廣泛應用于化工、醫藥、食品、造紙、冶金、建材、橡膠、機械等行業。可對細度范圍在80-500目內的粉狀物料很好的連續篩分。氣流篩篩分效率高、產量大，細度精確、無超徑混級現象，篩網立裝不荷重且可任意更換、使用壽命長，適應細度范圍廣，全封閉結構，無粉塵溢散，噪音小能耗低、可連續作業，維修方便。
QS type airflow screen machine is a kind of high accuracy screen machine that can screen the micro powder on the mesh, widely used in chemical, pharmaceutical, food, paper making, metallurgy, building materials, rubber, mechanical and other industries.can screen continuously fineness range within 80-500 mesh powder material .High screening efficiency, large output, precise fineness, without super size mixing phenomenon, screen made with no load and can be arbitrary replacement, long service life, suitable fineness range is wide, fully closed structure, no dust overflow scattered, continuous operation, low energy consumption, little noise easy maintenance
立式氣流篩
Vertical airflow screen
氣流篩廣泛應用于各種難篩微細粉，50-500目范圍內的細粉都能很好的篩分。如輕鈣粉、活性鈣粉、活性碳粉、淀粉、中藥粉、粉煤灰、鋅粉、石墨粉、石英砂粉、金粉、陶土粉、山楂粉、果疏粉、氫氧化鈣粉、農藥粉、魔芋粉、熒光粉、木粉、面粉、環氧樹脂粉、二氧化錳、硫磺粉、氧化鋁粉、膠木粉、氧化鎂、珍珠巖粉、鐵粉、棉短絨等。氣流篩粉機是一種有網篩分和分級設備，不是磨粉機。其喂料機的粉碎功能只是對成團的粉塊打碎利于過網，并無研磨功能。因此在選擇氣流篩粉機篩選某種細度的細粉時，首先要知道其中含有多大比例的該細度的細粉，如果其細度只有200目，想篩出325目細度的細粉是不可能的。氣流篩的特點是篩細不篩粗，塊狀及顆粒狀的物料適合用振動篩進行分級。
Airflow screen is widely used in all kinds of difficult to screen fine powder, within the scope of 50-500 mesh powder can be very good sieving.Such as the light calcium powder, activated calcium powder, activated carbon powder, starch, powder, fly ash, zinc powder, graphite powder, quartz powder, gold powder, clay powder, hawthorn powder, fruit powder, calcium hydroxide powder, pesticide powder, konjac powder, fluorescent powder, wood powder, flour, epoxy powder, manganese dioxide, sulfur powder, alumina powder, bakelite powder, magnesium oxide, perlite powder, iron powder, cotton linter, etc.Airflow screen machine is a kind of network screening and grading equipment, not a flour mill.The crushing function of the feeding machine is broken on the clouds of powder block to a network, no grinding function.So in the selection of airflow sieving a fineness of the powder, the first thing to know that it contains how much proportion of the fineness of the powder, if its fineness of 200 mesh only, want to screen out of 325 mesh fineness of fine powder is impossible.Airflow screen is the feature of fine sieve coarse, it is suit for vibrating screen to grand block and granular materials.
QS系列氣流篩分機(氣流篩)產品工作原理
氣流篩分機擯棄重力勢能作業原理，采用空氣作載體，動能作功的作業原理。通過負壓氣流將物料與空氣混合后，進入篩機風輪中間，通過風輪葉片施加足夠的離心力，向桶型篩網噴射過網，經過蝸殼收集。超徑物料不能過網，由自動排渣口排出，從而達到快速篩分之目的。該機適合80-530目有網各種粉狀物料篩選分級，其篩分效率高、產量大、自動進料排料、連續作業、無污染，使以往用各種振動篩難以進行高細度精密篩分作業成為易事。經過對120-180目輕鈣、300目重鈣、400目活性鈣、300目山楂粉、320-500目鋅粉、500目氧化鐵黑、氧化鐵紅、120-160目中藥粉、180-270目石英粉等物料的篩分使用，測得每平方米篩網面積每小時產量均在一噸左右，同時測得篩分效率在95%以上，空氣含塵量低于10mg/m3。
Working principles
Airflow screen machine abandon gravitational potential energy principle of operation, using air as the carrier, kinetic energy of the operation principle of work.Through negative pressure air after material is mixed with air, enter into sieve machine rotor,through pressure rotor blades press enough centrifugal force, the screen mesh to the bucket injection network, through the collection.Super size material cannot pass mesh, is being exhausted from port self-discharging, so as to achieve purpose of rapid screening .This machine is suitable for all kinds of powder material that has a small net at one 80-530 mesh screen classification, its high screening efficiency, large output, automatic feed discharging, continuous operation, no pollution, make the past with a variety of vibrating screen to a high fineness of precision screening operation become easy.After light calcium in 120-180 mesh, 300 mesh coarse whiting, active calcium and 400, 300 mesh hawthorn powder, 320-500 mesh zinc powder, 500 mesh, iron oxide red, iron oxide black powder in 120-160 mesh, 180-270 mesh sieve using quartz powder or other materials, measured per square metre screen area around a tonne output per hour, screening efficiency can be measured in more than 95% at the same time, the air dust content less than 10 mg/m3.
QS系列氣流篩分機(氣流篩)基本結構

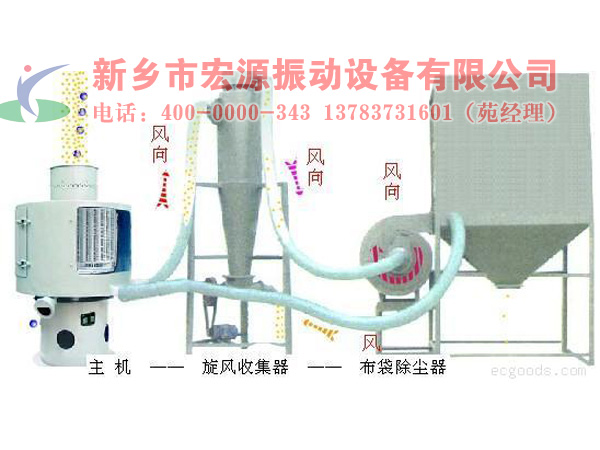

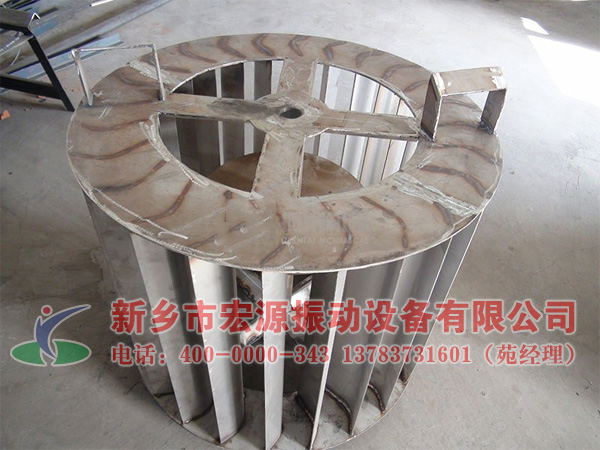

氣流篩粉機與氣固分離除塵裝置組成閉路篩分系統。主機是氣流篩粉機，篩體的密閉外殼內裝有立式圓周筒形篩網；篩網內側有圓周形風輪，由裝于底座上的電動機驅動旋轉；篩體外殼的正上方裝有進料斗及粗篩，下部設有排渣口；電動機與主軸為皮帶連接；風輪料斗下口形成進料間隙。氣固分離除塵裝置由引風機，沉降室和除塵布袋組成，氣流篩與分離除塵裝置之間由塑料波紋軟管連接。
Structures
Airflow screen machine and gas-solid separation of dust removal device of closed-circuit screening system.Host is the airflow sieving machine, screen body airtight enclosure with a vertical circular cylinder sieve;Inside of the screen has a circular shape rotor, installed on the base of the electric motor drive rotation;Sieve body shell is equipped with the hopper above and coarse sieve, bottom is equipped with discharge port;Motor connected to the spindle with belt;Wind turbines under the hopper mouth form feed clearance.Gas-solid separation of dust removal device is consists of induced draft fan, settling chamber and removing dust bag.Airflow separation with dust removal device between the plastic corrugated hose connection.
立式氣流篩工作原理
Working principles
QS系列氣流篩分機(氣流篩)性能特點
1.篩分效率高，可達到9 5％以上，臺時產量是振動篩的5—1 0倍或更高；
2.適應細度范圍廣，8 0一5 3 0目的粉狀物料均可高效篩分；
3.產品細度精確，無超級混級現象，篩網垂直安裝，不負重，使用壽命長；
4.篩分程序在負壓半循環狀態下進行，無粉塵污染，可與各種磨機、風路并網配用；
5.噪音小、耗電低、連續作業、減少維修。
Features
1. High screening efficiency, can reach more than 95%, units when output is vibrating screen of 5 to 10 times or higher;
2. Adapt to the fineness is wide and 80 to 530 powder material can be efficient screening;
3. The product fineness of precise, no super mixing phenomenon, screen installed vertically, not weight more , long service life;
4. Screening program in a state under the negative half cycle, no dust pollution, but with all kinds of grinding machine, the grid with wind path;
5. Low noise, low power consumption, continuous operation, reduce maintenance.
QS系列氣流篩分機(氣流篩)宜篩物料：
The appropriate for material

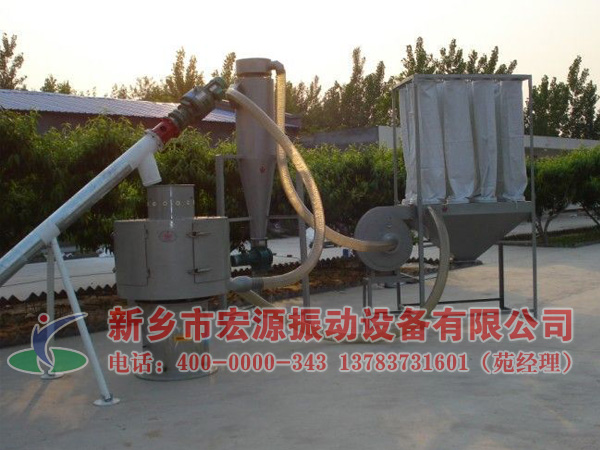

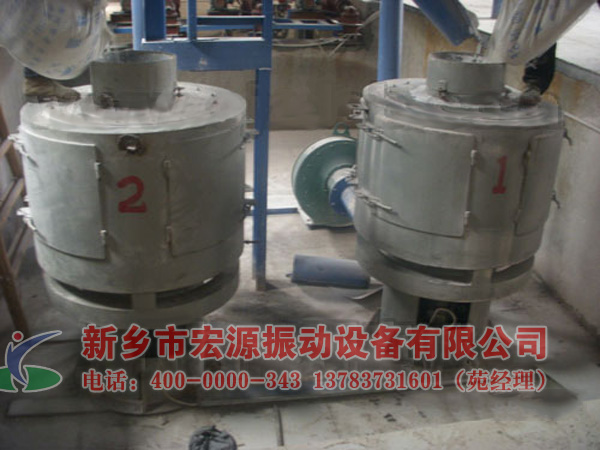

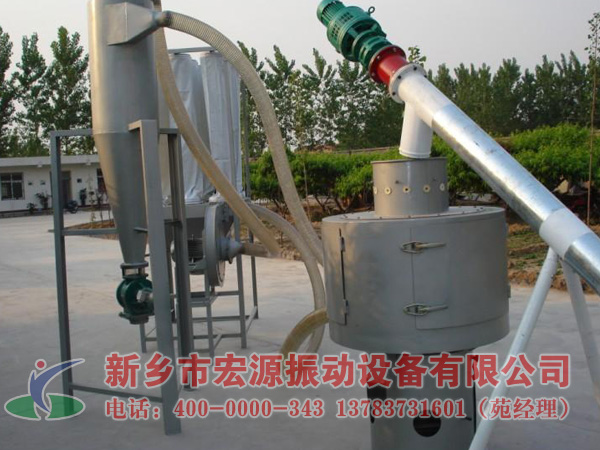

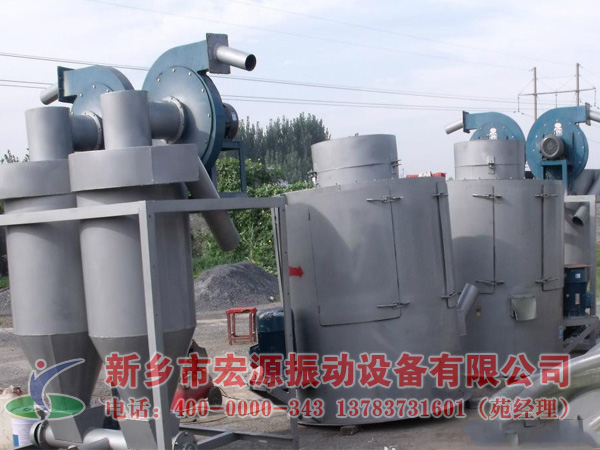

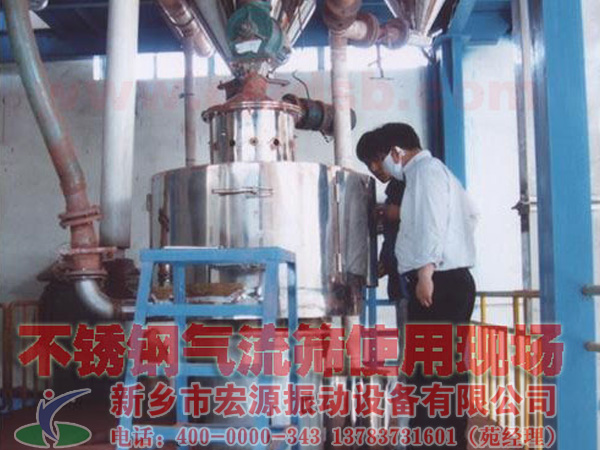

立式氣流篩使用現場
Working site
石墨粉、樹脂粉、中藥粉、涂料、粉煤灰、滑石粉、工業藥品、化妝品、滅火劑、塑料粉、陶土、研磨料、鋁粉、玻璃粉、耐火材料、淀粉、奶粉、冶金粉末、電磁材料、銅粉、炭黑、活性炭、輕質碳酸鈣、鐵礦砂等。
Graphite powder, powder, powder, coating, fly ash, talcum powder, industry, medicine, cosmetics, fire extinguishing agent, plastic powder, clay, abrasive materials, aluminum powder, glass powder, refractory materials, starch, milk powder, powder metallurgy, magnetic materials, copper powder, carbon black, activated carbon, light calcium carbonate, iron ore, etc.
QS系列氣流篩分機(氣流篩)技術參數表
Parameters| 型號 |
氣流量 m3/h |
篩網規格 |
有效篩面 m2 |
最大入料粒度 |
篩機功率 KW |
主軸轉速 rpm |
篩機外徑 mm |
篩機高度 mm |
| QS-600 | 240 |
80目 至 500目 |
0.6 |
40目 至 60目 |
2.2 | 1450 | 600 | 1250 |
| QS-1000 | 360 | 0.9 | 5.5 | 980 | 1008 | 1700 | ||
| QS-1200 | 430 | 2.9 | 7.5 | 960 | 1200 | 2400 | ||
| QS-1500 | 480 | 3.7 | 11 | 450 | 1500 | 2550 |
QS系列氣流篩分機(氣流篩)應用實例表
practical application|
物料名稱 |
工作方式 |
篩網（目/寸） |
QS-1000處理量 |
QS-1500處理量 |
|
輕鈣 |
干式 |
120-180 |
600-1000 |
1000-2000 |
|
重鈣 |
干式 |
400 |
600-1000 |
1000-2000 |
|
活性鈣 |
干式 |
500 |
600-1000 |
1000-2000 |
|
山渣粉 |
干式 |
300 |
600-1000 |
1000-2000 |
|
淀粉 |
干式 |
300 |
600-1000 |
1000-2000 |
|
鋅粉 |
干式 |
325 |
600-1000 |
1000-2000 |
|
粉煤灰 |
干式 |
120-200 |
600-1000 |
1000-2000 |
|
氧化鐵黑 |
干式 |
500 |
600-1000 |
1000-2000 |
|
氧化鐵紅 |
干式 |
500 |
600-1000 |
1000-2000 |
|
中藥粉 |
干式 |
120-160 |
600-1000 |
1000-2000 |
|
石英粉 |
干式 |
180-270 |
600-1000 |
2000-3000 |
|
面粉 |
干式 |
100-180 |
200-300 |
500-1000 |
|
木粉 |
干式 |
100-300 |
200-300 |
500-1000 |
|
云母粉 |
干式 |
300-400 |
200-300 |
500-1000 |
QS系列氣流篩分機(氣流篩)保養與維護
工作人員要嚴格按照氣流篩分機產品使用說明書的要求，正確使用設備。做好設備的清潔、潤滑、緊固和防蝕等日常維護工作，使設備經常保持內外清潔、性能良好、安全可靠的狀態。電器控制箱要保持清潔，嚴防粉塵落入控制箱，造成電氣元件失靈或短路。要定期檢查接地線是否良好，設備到電源開關的電纜線連接是否良好，如有老化應及時更換。氣流篩主機、電機和風機每年要檢修一次，加入適量潤滑油，清除電機內粉塵。配有激振器的篩機激振器每年必須維修一至二次，每次維修要加潤滑油，連接螺栓要緊固。
氣流篩的篩網更換時要保證均勻張緊，固定兩端鋼絲繩時，需邊緊固邊調整篩網。
Maintenance
Staff must be strictly in accordance with the requirements of the airflow screen machine product instruction for use, the proper use of equipment.Good ready to cleaning machine, lubrication, tighten and corrosion and daily maintenance work, keep the equipment often clean both inside and outside, the performance good, safe and reliable condition.Electrical control box to keep clean, protected from dust into the control box, prevent electric component failure or short circuit.Regularly check whether the earth wire is good, the equipment to the power switch cable connections are in good condition, such as aging, it should be replaced in a timely manner.Airflow screen host, motor and draught fan to maintenance once a year, adding suitable amount of lubricating oil, remove dust in the motor.Equipped with a vibrator screen machine vibrator must be repaired one to two times a year, each time maintenance to add lubricant, joint bolt fastening.
QS系列氣流篩分機(氣流篩)常見故障及排除方法
1、當處理量達不到要求時，應用檢驗篩檢測物料是否符合篩分要求。
2、當處理量突然增大時應取成品檢測分析，若成品不合格，應檢查篩網是否完好。
3、工作時突然不出料。
（1）應檢查風機是否正常，若風機流量減少，應檢修風機。
（2）檢查排料絞龍是否不能轉動、不能排料。
The Frequent Qustions and troubleshooting methods
1, when the capacity can not meet the requirements, using the standard screen test whether the material conforms to requirement of screening.
2, when capacity suddenly become larger, should take analysis of product testing, if the product is unqualified, should check whether the screen mesh is in good condition.
3. don't discharge in working.
(1) should check whether the draught fan is normal, if the fan flow is reduced, should repair it.
(2)check whether nesting ground screw cannot turn can't discharge.
QS系列氣流篩分機(氣流篩)使用注意事項
1、本機不宜篩分具有粘度，含水量大于5%的物料及易燃、易爆物料。
2、同等型號的氣流篩分機，篩分物料目數越大相應產量降低。
3、該機每次只能篩出一種目數的物料，如需同時得到幾種目數物料則需多機搭連。
4、訂貨時需說明以下事項：
a、需篩分物料的名稱及堆積比重。
b、物料粒度及含水量。
c、篩網目數。
d、篩機處理產量。
Notes
1, The machine can not sieve the viscosity, water content for more than 5%, inflammable, explosive material.
2, the same type of airflow sieving machine, the greater the sieving mesh material ,the yield decreased accordingly.
3, this machine can be screening at a time of a mesh material, if you want to get several mesh material at the same time need to put even more machine.
4, when placing order, indicate the following:
A, need to sieve the name of the material and the mass density.
B, material particle size and moisture content.
C, screen mesh.
D, sieve machine processing production.
