GZG型電機振動給料機
GZG系列電機振動給料機產品概述
GZG系列電機振動給料機是一種常用的振動給料設備,主要用于把塊狀、顆粒狀及粉狀物料從貯料倉或其它貯料設備中均勻、連續或定量地給到受料設備中，適應于自動配料、定量包裝和自動控制。廣泛應用于礦山、冶金、煤炭、建材、化工、電力、糧食等行業的連續或定量給料、自動配料等作業上。Product overview
GZG series motor is the vibration of the vibrating feeder is a kind of common feeding equipment, mainly for the massive, granular and powdered materials from the storage bin or other storage device in uniform, continuous or quantitatively to the feeding device, adapted to the automatic batching, quantitative packaging, and automatic control.Are widely used in mining, metallurgy, coal, building materials, chemical, electric power, food and other industries of continuous or quantitative feeding, automatic batching and other homework.

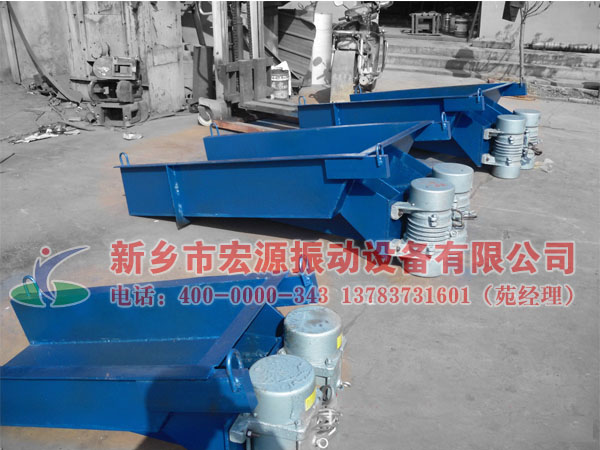

敞開式電機振動給料機
GZG series motor vibrating feeder on multiple occasions has widely replaced the electromagnetic vibration feeder, due to the vibration motor as vibration source, the speed, power control is very strong, and speed of the motor by controlling the transmission power, can achieve quantitative control, make this series motors are vibrating feeder quantificationally achieve quantitative control becomes very convenient in practical production.As in the coal supply system of power plant, the generally used inverter to motor vibrating feeder connected to automatic coal supply system.

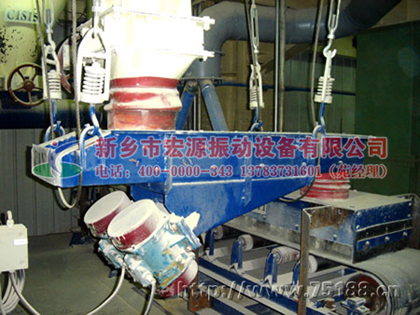

封閉式電機振動給料機
GZG series vibrating feeder motor in use process, can adjust vibration force to change and control flow, thus convenient adjustment, stable flow, low noise, small power consumption, no flow phenomenon, at the same time, the machine has light weight, small volume, low noise, less consumption, convenient maintenance, installation and maintenance is convenient wait for a characteristic, such as the close structure, can prevent the dust spillover and environmental pollution.
GZG型電機振動給料機產品主要特點
1.結構簡單、重量輕、噪音低、工作可靠、給料能力大、安裝維護方便。2.利用特制振動電機自同步原理，起動迅速、工作穩定、停車平穩。
3.物料按拋物線軌跡連續向前作跳躍運動，因此給料槽磨損較小。
4.由于可以瞬時地改變和啟閉料流，所以給料量有較高的精度。
5.本系列電機振動給料機不適合有防爆的場合。
Features
1. Simple structure, light weight, low noise, reliable operation, the feeding capacity, convenient installation and maintenance.
2. Since the synchronous motor with a special vibration principle, starting fast, working steady, smooth parking.
3. The material according to the continuous forward parabolic trajectory for jumping movement, therefore the feeding trough less wear and tear.
4. Due to the instantaneous to change and open/close material flow, so had a higher accuracy of quantificationally.
5. This series motor is vibrating feeder is not suitable for places that have requirements of explosion-proof.
GZG型電機振動給料機產品工作原理
GZG系列給料機的給料過程是利用特制的振動電機或兩臺電動機帶動激振器驅動給料槽沿傾斜方向作周期直線往復振動來實現,當給料槽振動的加速度垂直分量大于重力加速度時,槽中的料被拋起,并按照拋物線的軌跡向前跳躍運動,拋起和下落在瞬間完成,由于激振源的連續激振,給料槽連續振動,槽中的物料連續向前跳躍,以達到給料的目的。Working principles
GZG series feeder feeding process is to use special vibration motor or two electric motors to drive vibrator driven feed slot linear reciprocating vibration along the tilt direction for a cycle, when the feeding trough vibrating acceleration vertical component is greater than the acceleration of gravity, from the material in the tank is thrown, and according to the parabola track jumping movement forward, throwing up and down in instantaneous, due to the continuous vibration excitation source, continuous vibration feeding groove, groove continuous leap forward, the material to achieve the purpose of feeding.

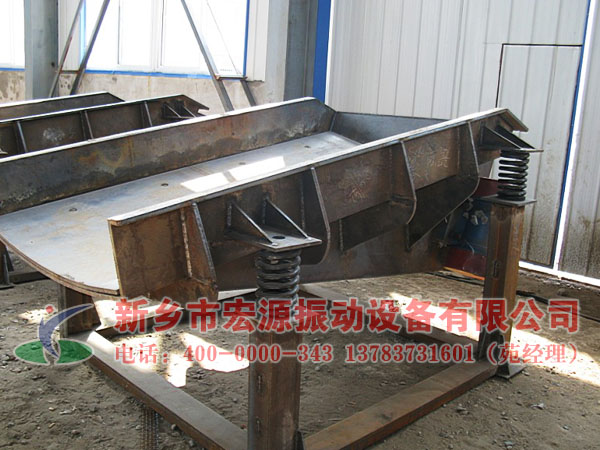

座式電機振動給料機
GZG型電機振動給料機產品適用范圍
GZG系列電機振動給料機廣泛應用于礦山、冶金、煤炭、建材、輕工、化工、電力、糧食等各行業中，用于把塊狀、顆粒狀及粉狀物料從貯料倉或漏斗中均勻連續或定量地給到受料裝置中去。如向破碎、選煤、篩分、運輸、包裝機械等給料、配料等。Applications
GZG series motor vibrating feeder is widely used in mining, metallurgy, coal, building materials, light industry, chemical industry, electric power, food and other industries, for the massive, granular and powdered materials from storage bin or funnel homogeneous continuous or to quantitatively to the device.Such as crushing, coal preparation, screening, transportation, packaging machinery and other feed, ingredients, etc.

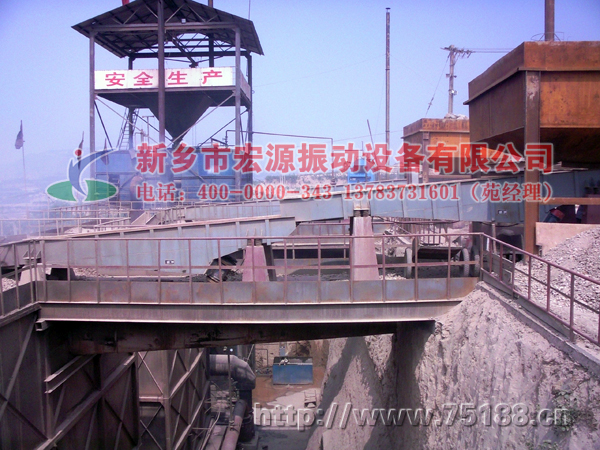

電機振動給料機使用現場圖
Working site

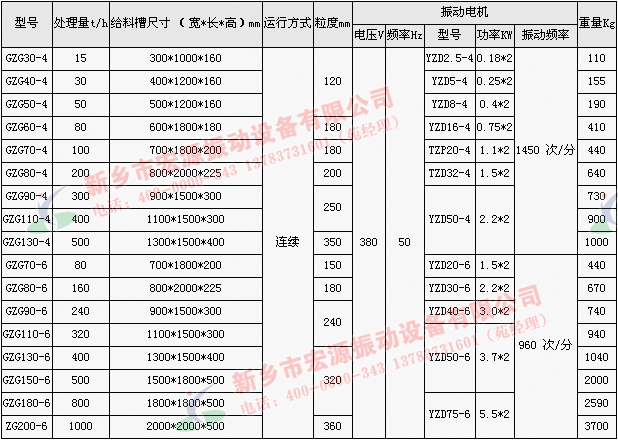

GZG系列電機振動給料機主要技術參數表
Parameters
1、振動給料機如用于配料、定量給料時，為保證給料的均勻穩定，防止物料自流，應水平安裝。如進行一般物料連續給料，可下傾10°安裝。對于粘性物料及含水量較大的物料可以下傾15°安裝。GZG型電機振動給料機安裝與調試、使用與維護
2、安裝后的給料機應留有20mm的游動間隙，橫向應水平，懸掛裝置采用柔性連接。
3、空試前應將全部螺栓緊固一次，尤其是振動電機的地腳螺栓，連續運轉3-5小時應重新緊固一次。
4、試車時，兩臺振動電機必須反向旋轉。
5、給料時在運行過程中應經常檢查振幅，電流及噪音的穩定性，發現異常應及時停車處理。
6、電機軸承每2個月加注一次潤滑油，高溫季節應每月加注一次潤滑油。
1, vibrating feeder, such as used for ingredients, quantitative feeding, to ensure the uniform stability of feed, prevent complete material and should be installed.Such as general continuous feeding material, can install downdip 10 °.For larger viscous material and water content of the material can be installed downdip 15 °.GZG type motor vibrating feeder installation and debugging, using and maintenance
2, after the installation of feeder should swim with 20 mm of clearance, transverse level, suspension device adopts flexible connection.
3, empty before try all bolts should be a, especially the vibration motor anchor bolt, continuous operation shall be retightened 3 to 5 hours.
4, commissioning, two vibrating motors must reverse rotation.
5, when the feed in the process of operation should be regularly check the amplitude, the stability of the current and noise, find parking exceptions should be timely treatment.
6, motor bearing once every 2 months filling of lubricating oil, high temperature season should be filling lubricating oil once a month.
GZG系列電機振動給料機設備選型注意事項
Equipment selection considerations
1、生產率的確定：本系列電機振動給料機的生產率是以河砂為標準物料給出的（堆比重為1.6T/m3）。當物料堆比重大于1.6T/m3時，其產量可按額定值選取；當物料的堆比重在1.2～1.6T/m3時，其產量可達到額定產量的0.9～1.0倍；當物料堆比重在0.8～1.2T/m3時，其產量可達到額定值的0.8～0.9倍。物料堆比重小于1.6T/m3時，須適當增加料層厚度，以提高產量。對于振動給料機難于輸送的物料（如滑石粉、鈦白粉、白泥、面粉、粘土等），以及含水量較大的親水性物料,則應根據試驗確定產量。必要時將槽體適當傾斜安裝（一般向下傾斜10～15度），以增加給料量。
2、控制箱的選擇：本系列電機振動給料機配套控制箱為反接制動控制箱，它可使給料機在停車時，快速停機，使給料機迅速通過共振區，避免過大振幅對機器造成損害。該控制箱具有過流、過壓、斷相等保護功能，另可根據工藝要求，增加能耗制動、快慢加料、遠程控制及無級調速等功能。用戶在訂購時請注明。
3、給料機使用條件：
（1）環境溫度不超過+40℃；
（2）在環境溫度為20±5℃時，周圍介質相對濕度不大于85%；
（3）周圍沒有嚴重腐蝕及影響電氣絕緣的介質。
4、如在選型時遇到空間距離限制寬度，可考慮將振動電機改為后置安裝，減小寬度尺寸。
溫馨提示：GZG系列電機振動給料機由于常應用于各種特定給料場合，其外形尺寸一般根據買方實際要求設計生產，以滿足各種給料量及場地安裝要求。該系列振動給料機常用為掛式，根據應用場合不同，可以選用鋼制彈簧或者是橡膠彈簧。該系列振動給料機也可以座式安裝，也可以加裝棒條、高耐磨襯板等作為放礦機使用。其具有靈活多變的使用方式，上述參數僅為常用情況下參數，具體情況請咨詢本公司技術人員。
1, the determination of productivity: this series of motor vibration feeder river sand material on the productivity of the given (bulk density of 1.6 T/m3).When the material bulk density is greater than 1.6 T/m3, its output according to rating the selection;When the material bulk density in 1.2 ~ 1.6 T/m3, the yield can reach 0.9 ~ 1.0 times of the rated output;When the material bulk density in 0.8 ~ 1.2 T/m3, the yield can reach 0.8 ~ 0.9 times of rating.Material bulk density is less than 1.6 T/m3, shall be appropriately increased material layer thickness, in order to improve the yield.For vibrating feeder is difficult to transport materials (such as talcum powder, titanium dioxide, white clay, flour, clay, etc.), as well as the water content of hydrophilic material, should be determined according to test production.Necessary tub tilt appropriate installation (the general tip down 10 ~ 15 degrees), in order to increase quantificationally.
2, the choice of control box: this series of motor vibration feeding machine control box to reverse connect braking control box, it can make the feeding machine when parking, fast down, take the feeder rapidly through the resonance area, avoid too large amplitude cause damage to the machine.The control box has over-current, over-voltage, equal protection function, the other according to the technological requirements, increase the braking energy consumption, fast charging, remote control and stepless speed regulation, and other functions.When ordering please indicate the user.
3, feeder conditions of use:
(1) the environment temperature is not more than + 40 ℃;
(2) when the environment temperature is 20 + / - 5 ℃, ambient relative humidity is not more than 85%;
(3) there is serious corrosion and the influence of electrical insulating medium.
4, such as the selection when space distance limit width, can consider to install the vibration motor to the rear, to decrease the size of width.
Warm prompt: because GZG series motor vibrating feeder often used in a variety of specific feeding occasions, its overall dimensions general design production according to the buyer of the actual requirements, to meet all kinds of quantificationally and site installation requirements.This series of vibrating feeder are commonly used for hanging, according to different applications, can choose steel spring or rubber spring.This series of vibrating feeder can also be a type installation, can also be equipped with the rods, high abrasion resistant lining board used as drawing machine.It has the use of a flexible way, the above parameters only for common cases, specific circumstances please consult technical personnel of the company.
GZG系列電機給料機,可根據用戶需要制成
Customized
下振式:振動電機置于給料機下面;
上振式:振動電機置于給料機上面;
調速式:振動電機的振頻可在0--額定頻率范圍內無級調速度;
敞開式:給料機上面敞開,比較適合下振式;
密封式:給料機除進出料口外,全部密封;
基座式:對于大型(重型)給料機,一般采用座式結構.
另我公司還可根據您的生產要求,為您訂做各種型號給料機。
Under vibration type: vibrating motor positioned below the feeder;
On the vibration type: vibrating motor placed above the feeder;
Speed: vibration frequency of the vibrating motor is within 0 - rated frequency stepless adjustable speed;
Open: feeder open above, to suit the type of vibration;
Sealed: except for the feeder front-rear outlets, all sealed;
Base type: for large (heavy) feeder, generally USES a type structure.
The other we also can according to your production requirements, customized for your various types feeder.
★我公司可根據用戶需要設計制造特殊型號規格的振動給料機。
★我公司對所有技術資料、尺寸保留修改的權利，如實物與文中圖案不符，應以實物為準。
★ my company can design and manufacture according to user needs special specifications of vibrating feeder.
★ for all my company reserves the right to modify technical data, size, such as material object does not accord with the design, the material shall prevail.
