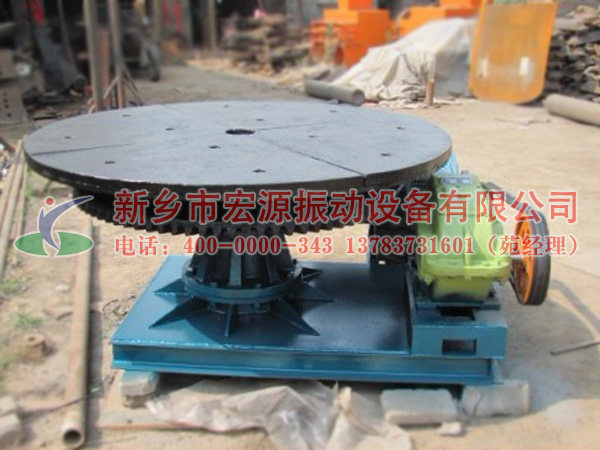

座式圓盤給料機
圓盤給料機主要供給選煤、選礦、燒結、電力、建材等行業中，裝在運物料機上的一種附屬機械作為運輸機給料之用。圓盤給料機工作原理和結構：本機分敞開吊式（DK）、封閉吊式（DB）、敞開座式（KR）、封閉座式（BR）。采用電機分交流電機和調速電機，當采用調速電機應補差價。（KR無調速電機）。
Disc feeder mainly supply coal preparation, mineral processing, sintering, electric power, building materials industries, pack on a subsidiary of the material on the machine for the use of conveyor feeding.Disc feeder, working principle and structure: the machine open hanging (DK), closed type (DB), open a type (KR), closed type (BR).The motor ac motor and speed regulating motor, when using speed regulating motor should be the difference.No speed regulating motor (KR).

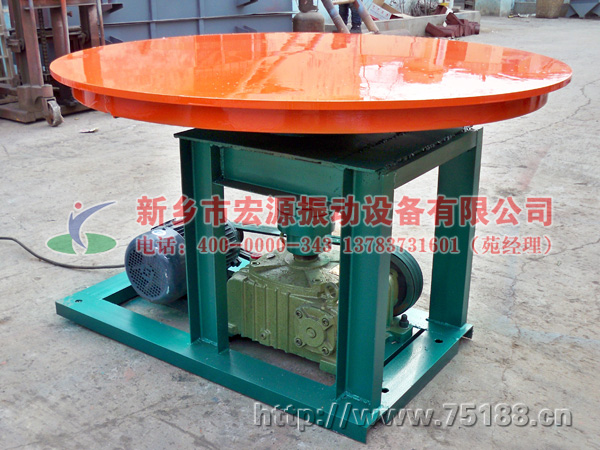

輕型圓盤給料機
Disc feeder mainly supply coal preparation, mineral processing, sintering, electric power, building materials industries, pack on a subsidiary of the material on the machine for the use of conveyor feeding.Disc feeder, working principle and structure: the machine open hanging (DK), closed type (DB), open a type (KR), closed type (BR).The motor ac motor and speed regulating motor, when using speed regulating motor should be the difference.No speed regulating motor (KR).
輕型圓盤給料機
圓盤給料機技術參數:
Parameter:| 型號 | 圓盤直徑 | 生產能力m3/h | 圓盤轉數r/min | 物料粒度mm | 安裝形式 | 減速機 | 電動機 | 重量Kg |
外形尺寸 長*寬*高 |
||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 型號 | 速比 | 型號 | 功率 | ||||||||
| DK6 | 600 | 0.6-3.9 | 8 | 25 | 敞開吊式 | 5308-01 | 53 | Y90L-6 | 1.1 | 403 | 855*960*925 |
| JZTY21-6 | |||||||||||
| DK8 | 800 | 1.4-7.6 | 8 | 30 | 敞開吊式 | 5308-1-0 | 53 | Y90L-6 | 1.1 | 555 | 1085*1089*1520 |
| JZTY21-4 | |||||||||||
| DK10 | 1000 | 2.5-16.7 | 7.5 | 40 | - | 5312-01 | 52 | Y100L-6 | 1.5 | 827 | 1350*1350*1427 |
| JYTY22-4 | |||||||||||
| DK13 | 1300 | 4.2-27.9 | 6.5 | 50 | - | 5316-01 | 54 | Y132S-6 | 3 | 1150 | 1735*1516*1427 |
| JZTY32-4 | |||||||||||
| DK16 | 1600 | 7-18.6 | 6 | 60 | - | 5319-01 | 62 | Y132M1-6 | 4 | 2125 | 2115-2050*1535 |
| JYTY41-4 | |||||||||||
| DK18 | 1800 | 9.2-60 | 5 | 70 | - | 5322-01 | 62 | Y132M2-6 | 5.5 | 2900 | 2365*2030*1963 |
| JZTY42-4 | |||||||||||
| DK20 | 2000 | 13.6-38 | 5 | 80 | - | 5322-01 | 62 | Y132M2-6 | 5.5 | 3140 | 2620*2150*2165 |
| JZTY42-4 | |||||||||||
| DB6 | 600 | 0.6-3.9 | 8 | 25 | 封閉吊式 | 5308-01 | 53 | Y90L-6 | 1.1 | 490 | 855*980*1052 |
| JZTY21-4 | |||||||||||
| DB8 | 800 | 1.1-7.6 | 8 | 30 | - | 5308-1-0 | 52 | Y90L-6 | 1.1 | 597 | 1085*1089*1152 |
| JZTY21-4 | |||||||||||
| DB10 | 1000 | 2.5-16.7 | 7.5 | 40 | - | 5212-01 | 52 | Y100L-6 | 1.5 | 906 | 1263*1350*1237 |
| JZTY22-4 | |||||||||||
| DB13 | 1300 | 4.2-27 | 6.5 | 50 | - | 5316-01 | 54 | Y132S-6 | 3 | 1240 | 1516*1735*1597 |
| JZTY32-4 | |||||||||||
| KR10 | 1000 | 0-14 | 7.5 | 40 | 敞開座式 | TZQ350 | 31.5 | Y112M-6 | 2.2 | 740 | 720*1430*650 |
| KR15 | 1500 | 0-25 | 7.5 | 55 | - | JZQ400 | 31.5 | Y132M2-6 | 5.5 | 1280 | 920*1750*720 |
| KR17 | 1700 | 0-50 | 7.5 | 60 | - | JZQ400-Ⅲ-1Y | 31.5 | Y132M2-6 | 5.5 | 1320 | 920*1750*720 |
| KR20 | 2000 | 0-100 | 7.5 | 80 | - | JZQ500-Ⅲ-1Y | 31.5 | Y160L-6 | 11 | 1754 | 1030*1965*810 |
| BR10 | 1000 | 0-13 | 6.3 | 50 | 封閉座式 | ZS50-8-ⅠⅡ | 63 | Y132S-6 | 3 | 1223 | 1932*1520*895 |
| BR15 | 1500 | 0-30 | 6.3 | 50 | - | ZS75-3-ⅠⅡ | 63 | Y160M-6 | 7.5 | 2710 | 2841*1920*1122 |
| BR20 | 2000 | 0-80 | 4.79 | 50 | - | BR20-2 | 87 | Y160L-6 | 11 | 5234 | 3374*2016*1122 |
| JZTY61-4 | 15 | ||||||||||
| BR25 | 2500 | 0-120 | 4.72 | 50 | - | BR25-2 | 88.2 | Y200L1-6 | 18.5 | 7747 | 3790*2500*1122 |
| JZTY71-4 | 22 | ||||||||||
| BR30 | 3000 | 180 | 3.1 | 20 | - | BR30-2 | 128.87 | Y200L2-6 | 22 | 1335 | 4600*2958*1420 |
